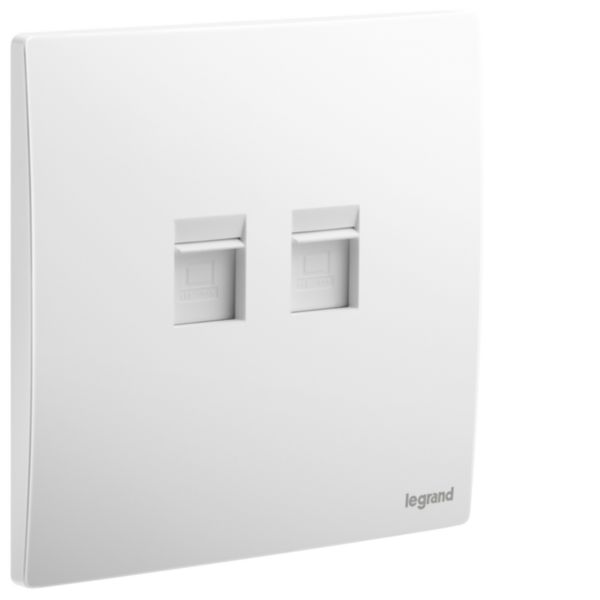

Double RJ45 socket outlet category 6 UTP matt white

Name: Double RJ45 socket outlet category 6 UTP matt white
SKU: 281165MW

Mallia Senses LEGRAND

REF. 281165MW EAN. 3414972090018

Compare You can only compare 4 products, you must remove 1 to add this one

RJ45 Cat 6 : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
MALLIA SENSES is sold as a complete set under one cat number
Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
TIA 568A/B color coded contacts for standard wiring
Matt white finish

Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.

Surface mounting	No
Flush-mounted installation	Yes
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with full cover plate
Type of connector	2x RJ45 8(4)
Category	6
Colour	White
RAL-number	9003
Connection type	110
Shielded housing	No
Separate earthing connection	No
With label space	No
Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	Yes
With terminal resistor	No

Degree of protection (IP)	IP20
Colour coding	Yes
Device width	86 mm
Device height	86 mm
Device depth	36.3 mm
Number of modules (module system)	2
Built-in depth	28.7 mm
degree of impact strength (IK)	IK04
Operating / setting temperature	-5-50 °C
Storage temperature	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Horizontal fixing center distance	60.3-60.3 mm
