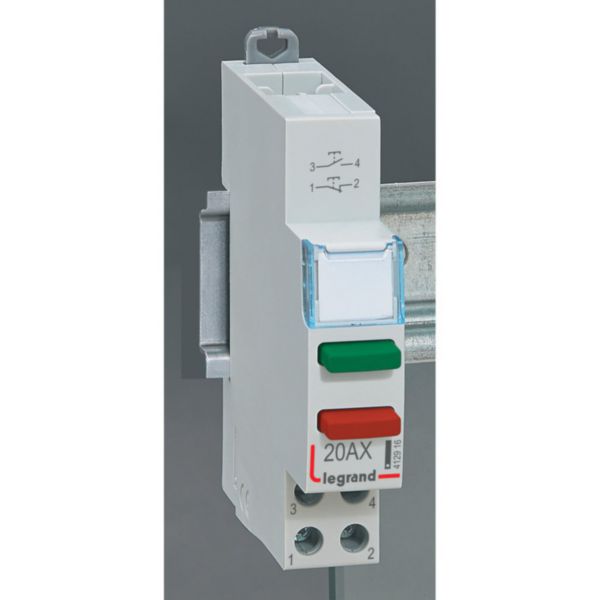

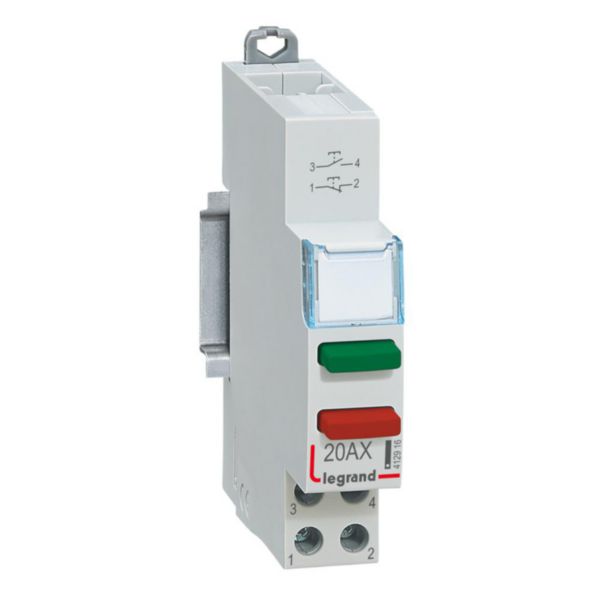

Name: Double push-button switch CX³ 1N/O + 1N/C contacts - 250V~ - 20A - 1 module
SKU: 412916

Double push-button switch CX³ 1N/O + 1N/C contacts - 250V~ - 20A - 1 module

CX³ LEGRAND

Double push-button switch CX³ 1N/O + 1N/C contacts - 250V~ - 20A - 1 module

REF. 412916 EAN. 3414970531643

Compare You can only compare 4 products, you must remove 1 to add this one

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Fitted with a label holder allowing a clear, visible and convenient identification of the circuit. Ergonomic push-button.

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Switching current	20 A
Switching voltage	250 V
Voltage type	AC
With complemantary luminous signal	No
Colour button	Red/green
Width in number of modular spacings	1
Built-in depth	44 mm
Degree of protection (IP)	IP20
Width	17.8 mm
Height	90 mm
Depth	73.5 mm

Degree of impact strength (IK)	IK04
Operating / setting temperature	-25-70 °C
Storage temperature	-40-70 °C
Type of lighting	LED exchangeable
Estimated bulb life	100000 h
Electric supplying direction	From the bottom
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Screwed terminal
Terminals capacity	0.75-4 mm²
Label space/information surface	Yes
Mounting method	DIN rail
