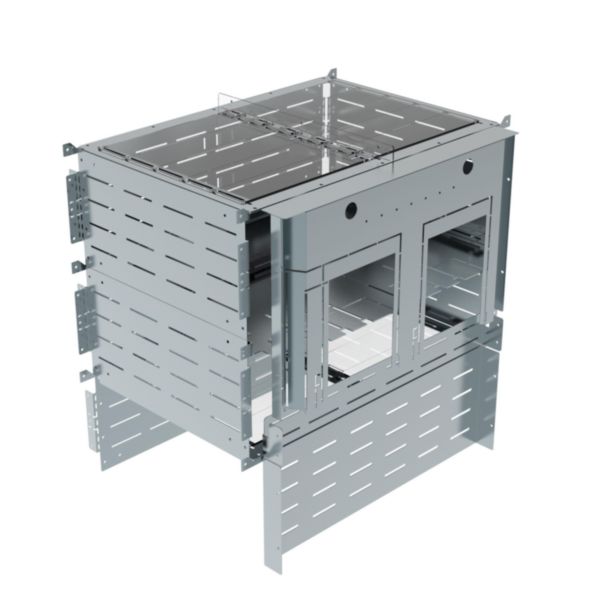

DMX³ 1600 compartment kit for XL³ 4000/6300 - width 36 modules - depth 975 mm

Name: DMX³ 1600 compartment kit for XL³ 4000/6300 - width 36 modules - depth 975 mm
SKU: 021099

LEGRAND

REF. 021099 EAN. 3414970757029

Compare You can only compare 4 products, you must remove 1 to add this one

Forms of separation equipment for XL³ 4000 and 6300
DMX³ 1600, compartment kitWidth 36 modules - for enclosure depth 975 mm - For forms : - 2a (rear terminals connection) - 2b ( Front and rear terminals connection) - 3a (rear terminals connection) - 3b ( Front and rear terminals connection) - 4a ( Front terminals connection) - 4b (rear terminals connection)

Modular spacing	850 mm
Suitable for enclosure building width	975 mm
Suitable for enclosure building depth	975 mm
Width	850 mm
Height	600 mm
Material	Steel
Surface finishing	Galvanised
With cable entry	Yes

With lock	No
Construction type	Assembly kit
For internal separation form 2a	Yes
For internal separation form 2b	Yes
For internal separation form 3a	Yes
For internal separation form 3b	Yes
For internal separation form 4a	Yes
For internal separation form 4b	Yes

1 document

Select all

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)
