DLP-S mini-trunking 50x20mm. Length 2m

DLP-S LEGRAND

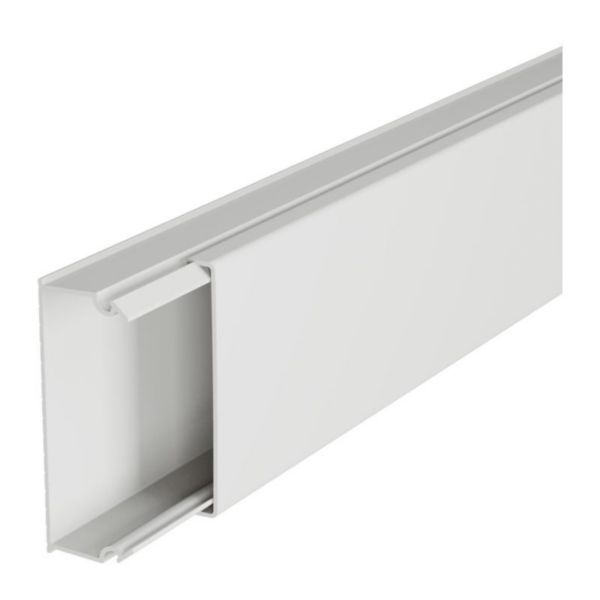

DLP-S mini-trunking 50x20mm. Length 2m

REF. 638160 EAN. 3245066381602
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Comply with reliability, safety and technical performance requirements accord EN50085 - 2 - 1
  • Without separation partition
  • Colour : white

The product's benefits

Installation
  • Nail or screw on the wall
Usage
  • Ideal for renovation in the residential and small tertiary

Technical characteristics

Height 20 mm
Width 50 mm
Length 2000 mm
Usable cross section 831 mm²
Material Plastic
Material quality Polyvinyl chloride (PVC)
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Suitable for circuit integrity No
Colour White
Transparent No
RAL-number 9003
Number of permanent partitions 0
Number of plug-in partitions 0
Type of fastening Nail strip
Cover model Loose
With cable fixing clip No
With protective foil No
With duct connector No
Delivery on roll No
Degree of protection (IP) IP40
degree of impact strength (IK) IK06
Operating / setting temperature 15-60 °C
Storage temperature -25-60 °C

Documentation

2 documents
Technical Sheet
F01197EN-07.pdf pdf (2.05 Mo)
Technical Sheet
F01197FR-05.pdf pdf (2.05 Mo)
2 documents
Catalogue Commercial Page
ex223001_1052.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_1053.pdf pdf (0.06 Mo)
