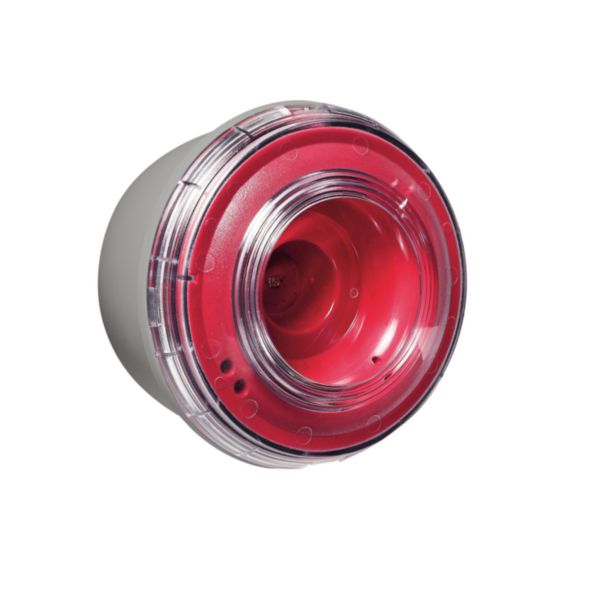

DL rouge 10 candélas IP 45

Name: DL rouge 10 candélas IP 45
SKU: UR-367303

URA

REF. UR-367303 EAN. 3613400156429

Compare You can only compare 4 products, you must remove 1 to add this one

Nominal voltage (Min-Max)	9-58 V
Height	122 mm
Depth	85 mm
Electricity consumption (Min-Max)	0.014-0.042 A
Degree of protection (IP)	IP45
Width	122 mm
Housing material	Plastic
Colour of lamp hood	Red
Mounting method	Surface mounting

Flash energy	2.02 J
Lamp type	LED
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
According to EN 54-23	Yes
Coverage volume	100 m³
Type of current	DC
Contains Batteries and/or Accumulator	No

1 document

Select all

Instruction Use

LE04995AA.pdf pdf (1.15 Mo)

1 document

Select all

Product Sheet

CP_367303-2.pdf pdf (0.28 Mo)

2 documents

Select all

Agreement

NFSSI Composant-DL 017 A1 (0.22 Mo)

Declaration of performance

DOP-0330-CPR-075455 (0.3 Mo)
