DIY kit mirror 7" screen plug-in

Name: DIY kit mirror 7" screen plug-in
SKU: 368910

LEGRAND

REF. 368910 EAN. 3414972469814

Compare You can only compare 4 products, you must remove 1 to add this one

With video	Yes
Number of indoor stations	1
Number of outdoor stations	1
Number of call buttons	2

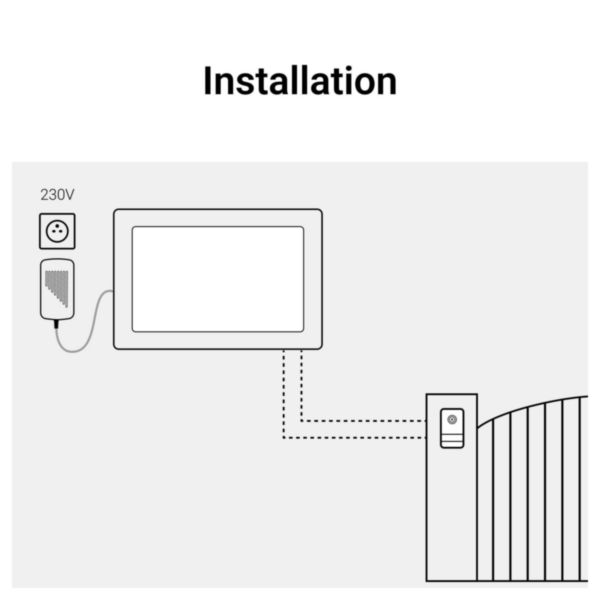

Installation technique	2-wire
Mounting method indoor station	Surface mounted
Colour indoor station	Stainless steel
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Expandable to max. number of indoor stations	6
Expandable to max. number of outdoor stations	2
Picture system	PAL
Property picture system	Colour
Overhear protected	No
Can be connected to smartphone	No
Internal communication	Yes
Hands free	Yes
With day/night function	No
Opening angle camera	95 °
Zoom, pan/tilt function	No
With memory function	No
Screen diagonal	177.8 mm
Screen diagonal (inch)	7 inch
Manual adjustable camera	Yes
Label space/information surface	Yes
Hearing aid compatible	No
Suitable for disabled persons	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No

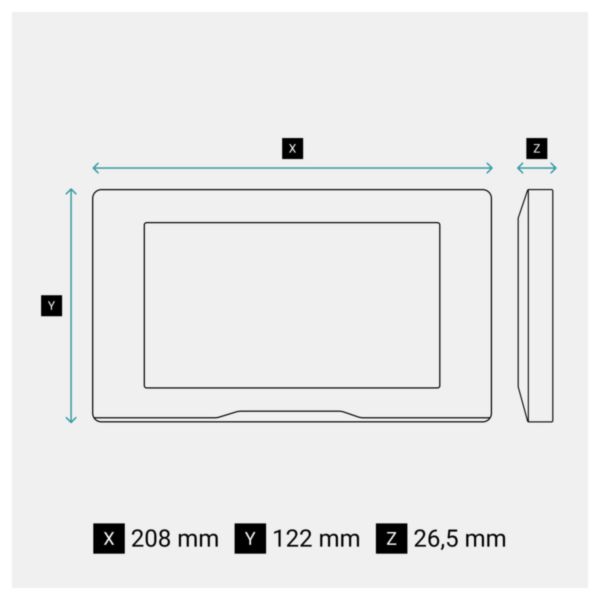

Width	208 mm
Height	122 mm

Depth	26.5 mm
Built-in depth	0 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	-10-40 °C
Storage temperature (Min-Max)	-25-70 °C
Voltage type	AC
Nominal voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Halogen free	Yes
Antimicrobial treatment	No
Cable nature for connection	Flexible
Cable section (Min-Max)	0.28-0.5 mm²
Fitted with USB plug	No
Fitted with rainproof plate protection	Yes
With complemantary luminous signal	Yes
Mounting method	Surface mounted
Vertical fixing center distance (Min-Max)	60-103 mm
Horizontal fixing center distance (Min-Max)	60-142.5 mm
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	Yes
Remote opening of gate / Electric door opener	Yes
Screen brightness setting	Yes
Screen contrast setting	Yes
Memory video function	No
Camera type	Fixed
Video recorder angle	95 °
Max distance between internal and external unit	100 m
Communication rank type	Other
Connected object	No

1 document

Select all

Instruction Use

LE14050AB.pdf pdf (6.84 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0846.pdf pdf (0.09 Mo)
