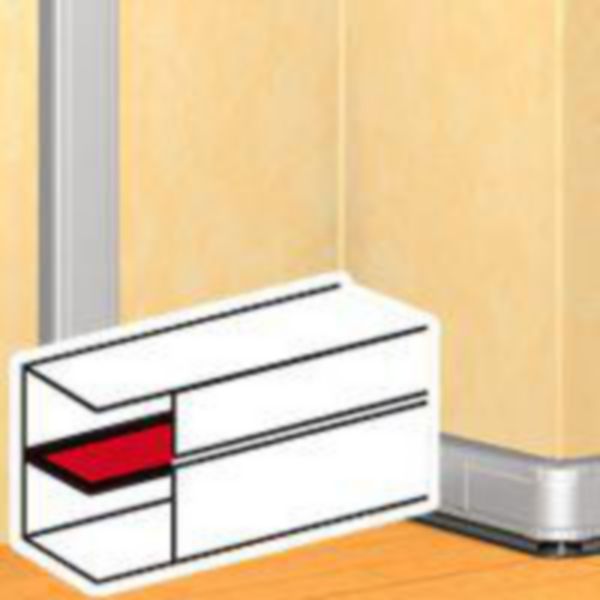

Division partition for universal Aluminium trunking 50x150mm and 50x195mm. Height 50mm

DLP LEGRAND

Division partition for universal Aluminium trunking 50x150mm and 50x195mm. Height 50mm

REF. 011106 EAN. 3245060111069
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Allows to switch from one compartment to another
  • Delivered in length of 2m
  • Compatible with universal DLP Aluminium trunking cat.no 011102 and 011104
  • Material: aluminium anodic natural

The product's benefits

Installation
  • Clippes directly on the body of the trunking
Usage
  • Allows the separation of power cable and data cable

Technical characteristics

Model 1-fold
Suitable for duct depth 50 mm
Type of fastening Snap on
Length 2000 mm
Material Aluminium
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Operating / setting temperature (Min-Max) 15-60 °C
Colour Other
degree of impact strength (IK) Other
Width 16.5 mm
Height 45.8 mm
Storage temperature (Min-Max) -25-60 °C

Documentation

2 documents
Technical Sheet
F00639FR-04.pdf pdf (0.95 Mo)
Technical Sheet
F00639EN-04.pdf pdf (0.91 Mo)
2 documents
Catalogue Commercial Page
ex223001_1093.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_1095.pdf pdf (0.05 Mo)
1 document
PEP
LGRP-2014-040-V1-EN.pdf pdf (1.34 Mo)
