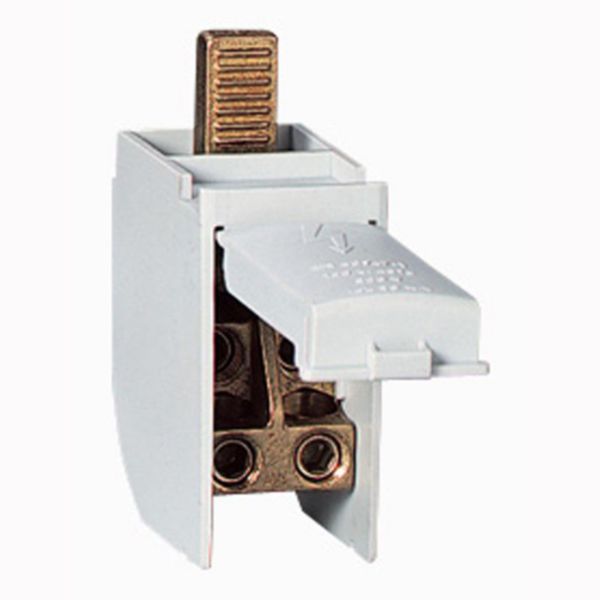

Distribution terminal - 160 A - 6 ouputs 25 mm² flexible

Name: Distribution terminal - 160 A - 6 ouputs 25 mm² flexible
SKU: 004867

LEGRAND

REF. 004867 EAN. 3245060048679

Compare You can only compare 4 products, you must remove 1 to add this one

Modular distribution blocks 40 to 250 A - Standard distribution - Connection with or without Starfix ferrules - Self - extinguishing, according to EN 60695 - 2 - 11 : 960 °C on active part supports
Distribution terminals - 160 A - 6 outputs 25 mm² flexible - Isc peak 30 kA‚ - Can be fitted directly onto downstream terminal of Vistop 100/160 A

Number of poles	1
Nominal current	160 A
Connection type	Screwing
Mounting method	Screw
Number of outputs	6
Suitable for solid conductors	Yes
Suitable for stranded conductors	Yes
Suitable for fine strand conductors	Yes
Suitable for fine strand conductors without cable end sleeve	No
Suitable for extra fine-strand conductors	No
Suitable for extra fine-strand conductors without cable end sleeve	No

Conductor cross section, input (Min-Max)	50-50 mm²
Conductor cross section, output (Min-Max)	25-25 mm²
Conductor cross section, input AWG (Min-Max)	1-1
Conductor cross section, output AWG (Min-Max)	4-4
Contact safe	Yes
Degree of protection (IP)	IP2X
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-25-70 °C
Type of distribution blocks	Multifunction
Terminals capacity (Min-Max)	25-25 mm²
Label space/information surface	No
