Product characteristics

• Surface mounting cabinets XL³ 125 - from 18 to 72 modules - IP 40 - IK 09 with door - IP 30 - IK 08 without door - Class II - Self - extinguishing : resistance to incandescent wire 650 °C - Conform to IEC 60670 - 24 - Allows to achieve assemblies conform to IEC 61439 - 3

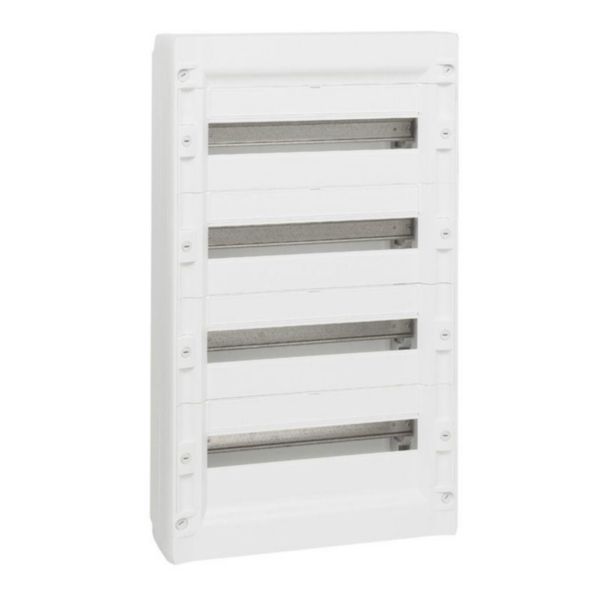

• Surface mounting distribution cabinets - Capacity 18 modules per row - White RAL 9003 - Fully reversible cabinet (base, door and faceplates ) - Supplied with : - removable and pivoting chassis with rails fitted. Rails can be individually removed for easy cabling on site - removable cable entry plate (top and bottom) - removable faceplates (for each row) - IP 2X screw terminal blocks for neutral and earth - blanking plates (5 modules, separable per module or 1/2 module) 1 sheet of self - adhesive labels for circuit identification (marking per module) - Spacing between rails 150 mm - Adjustable rail (2 - position) for fitting modular equipment or DPX³ 160 moulded case circuit breakers - Can be fitted with perforated plates and solid faceplates for mounting non-modular products (2, 3 to 4 - row cabinets ) - Doors to be ordered separately - Number of rows : 4 - Number of modules : 72 - Height : 750 mm - Width : 450 mm - Depth : 128 mm
