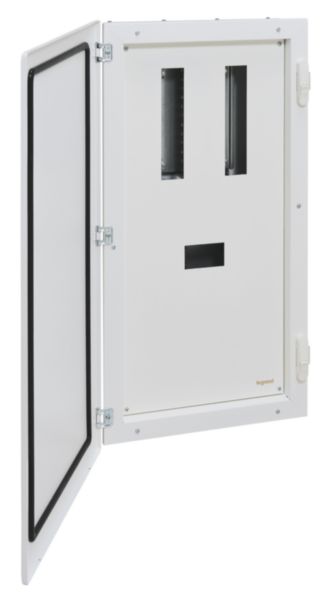

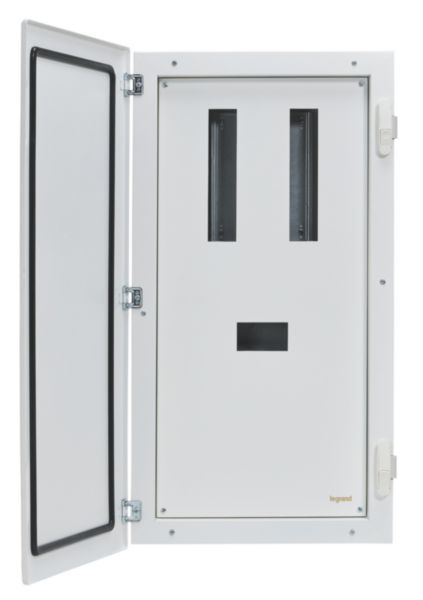

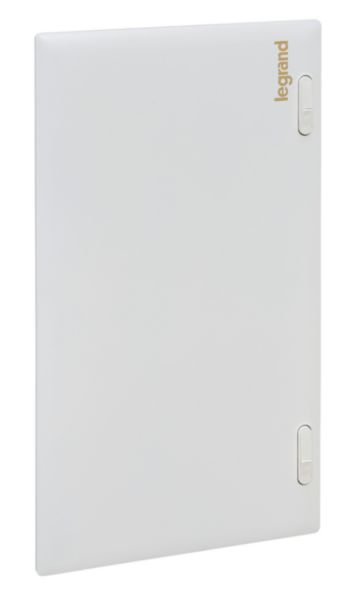

Distribution board 250A MCCB DPX4 ways

Name: Distribution board 250A MCCB DPX4 ways
SKU: 507516

Ekinox4 LEGRAND

REF. 507516 EAN. 8904129885178

Compare You can only compare 4 products, you must remove 1 to add this one

Product Supplied with surface or flush mounting box, door with handle, faceplate, fully isolated tin-plated copper busbarand supplied with 2 neutral bar, 2 earth bar and cable ties for cable management

Range available, from 12 to 54 poles (from 4 to 18 ways), flush or surface mounting with same item and equiped with rail for MCBs or with mounting plate for MCCBs (maximum rating 125 A or 250 A)

Reversible door can be easily removed
Shrouded neutral bars and insulated DIN rail extremities for sufficient shock absorption
Integrated earthing system in order to avert risky contact

Mounting method	Other
number of rows	1
Width in number of modular spacings	12
Type of covering	Door
Cover model	Closed
Transparent cover/door	No
Signal passing door	No
With lock	No
Type of closure	Push button
Housing material	Steel
Built-in depth	107 mm
Built-in height	664 mm
Built-in width	400 mm
Earthing terminal block	Yes
Neutral terminal block	Yes

DIN-rail	No
With mounting plate	Yes
Extension possible	No
Colour	White
EMC-version	No
RAL-number	9016
Degree of protection (IP)	IP43
Height	703 mm
Width	457 mm
Depth	137 mm
Enclosure capacity (Nb of modules)	12
degree of impact strength (IK)	IK09
Halogen free	No
Fitted with rainproof plate protection	No
