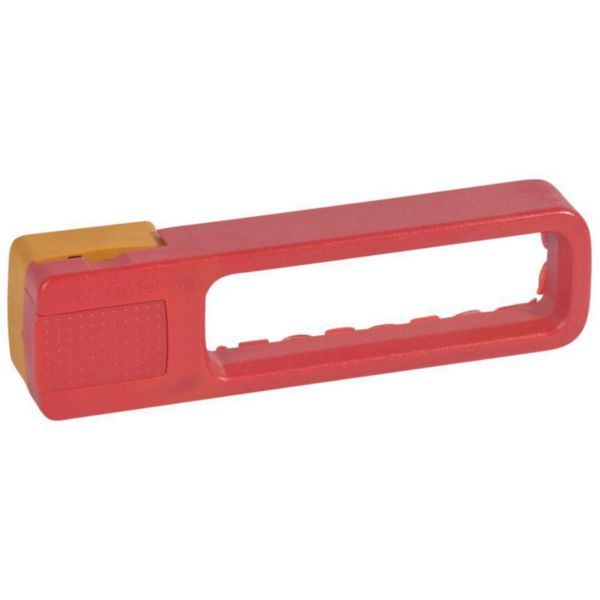

Direct rotary handle for DPX-IS 250 isolating switch - left-hand side mounting

DPX³ 630 LEGRAND

Direct rotary handle for DPX-IS 250 isolating switch - left-hand side mounting

REF. 026690 EAN. 3245060266905

DPX-IS, equipment for isolating switches

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

DPX-IS, equipment for isolating switches

Product characteristics
  • Direct for emergency use, for mounting instead of standard handle
  • Left-hand side handle

Technical characteristics

Colour Red
Suitable for emergency stop Yes
With extension shaft No
Suitable for power circuit breaker Yes
Suitable for switch disconnector Yes

Documentation

2 documents
Instruction Use
LE04940AB.pdf pdf (1.98 Mo)
Instruction Use
Y0300C.pdf pdf (0.48 Mo)
5 documents
Catalogue Commercial Page
ex223001_0248.pdf pdf (0.08 Mo)
Catalogue Technical Page
ex223001_0254.pdf pdf (0.03 Mo)
Catalogue Technical Page
ex223001_0249.pdf pdf (0.11 Mo)
Catalogue Technical Page
ex223001_0251.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0250.pdf pdf (0.07 Mo)
1 document
3D Autocad
026690.dwg dwg (0.09 Mo)
