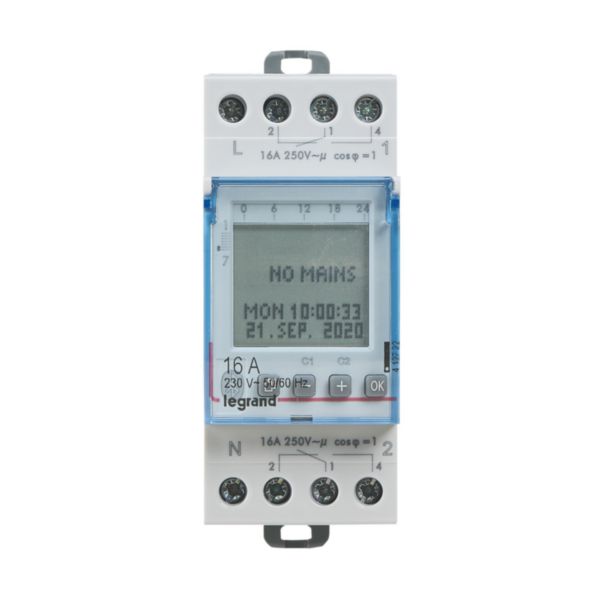

Digital time switch 2 channel Week Bluethooth 230V

LEGRAND

Digital time switch 2 channel Week Bluethooth 230V

REF. 412722 EAN. 3414971676756
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Bluetooth
  • 230 V - 50/60 Hz
  • 56 programs
  • 2 changeover switch 16 A

Technical characteristics

Mounting method DIN rail
Number of channels 2
Supply voltage 230-230 V
Voltage type (supply voltage) AC
Frequency supply voltage 50-60 Hz
Autonomy in years 5
Accuracy per day 0.1 s
Text guidance in display Yes
External programming Yes
With memory card No
60 min program No
24 h program Yes
Weekly program Yes
Annual program No
Holiday program Yes
Impulse program No
Cycle program Yes
Astro program No
Random program Yes
Hour meter Yes
Mains synchronous Yes
Quartz controlled Yes
Radio-controlled No
Radio-controlled (DCF77) No
GPS (global positioning system) No
Contact type Change-over contact (NO/NC)
Shortest switching time channel 1 0.01666 s
Shortest switching time channel 2 0.01666 s
Number of memory locations 56
Automatic switching summer/winter time Yes
Suitable for manual operation Yes
External push button input Yes
Switching preselection Yes
Nominal switching current at 250 V AC 16 A
Potential free switch contact Yes
Degree of protection (IP) IP20
Width in number of modular spacings 2
Width 35.6 mm
Height 83 mm
Depth 60 mm
Storage temperature -20-60 °C
Electric supplying direction By the top or bottom
Terminal marking indication Yes
Colour Grey
RAL-number 7035
Halogen free Yes
Connection type Screwed terminal , Cable
Terminals capacity 1.5-4.0 mm²
Label space/information surface No
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2477
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 11 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Bluetooth
Application store for download App Store , Google Play Store
With voice command No
Programmable Yes
Interoperable connection Protocol No
Connectable by Internet box No
Programming way Smartphone apps
Product use function Control & command systems

Documentation

2 documents
Instruction Use
290805FR-00.pdf pdf (1.93 Mo)
Instruction Use
290805GB-00.pdf pdf (1.91 Mo)
2 documents
Catalogue Commercial Page
ex223001_0100.pdf pdf (0.09 Mo)
Catalogue Commercial Page
ex223001_0101.pdf pdf (0.09 Mo)
