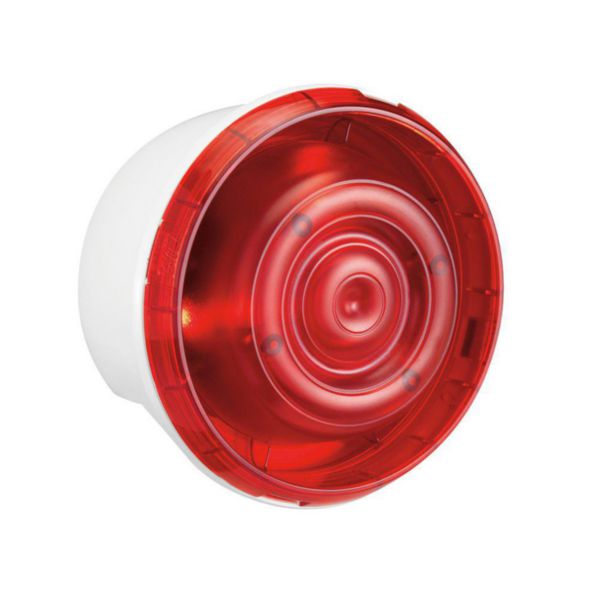

Name: Diffuseur sonore classe B (90 dB) étanche IP 65 + flash rouge
SKU: UR-367220

Diffuseur sonore classe B (90 dB) étanche IP 65 + flash rouge

URA

Diffuseur sonore classe B (90 dB) étanche IP 65 + flash rouge

REF. UR-367220 EAN. 3613400154678

Compare You can only compare 4 products, you must remove 1 to add this one

Nominal voltage	10-58 V
Type of current	DC
Electricity consumption	0.023 A
Power	1.5 W
Power consumption in standby mode	0 W
Colour of lamp hood	Red
Lamp type	LED
Loudness	90 dB
Type of optical signal	Flash light
Type of acoustic signal device	Sound generator
Type of acoustic signal	Pulse tone/continuous tone
Mounting method	Surface mounting
Suitable for wall mounting	Yes
Suitable for ceiling mounting	No
Housing colour	Grey
Degree of protection (IP)	IP65
For Ex-zone gas	None
For Ex-zone dust	None
With contact	No
Frequency sound signal	440-554 kHz
According to EN 54-23	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No

Compatible with Amazon Alexa	No
IFTTT support available	No
Width	122 mm
Height	75 mm
Depth	75 mm
Built-in depth	0 mm
degree of impact strength (IK)	IK07
Operating / setting temperature	-10-+55 °C
Mandatory neutral	No
Halogen free	Yes
Connection type	Push-in clamp
Terminals capacity	1.5-1.5 mm²
Horizontal fixing center distance	60-60 mm
Addressable	No
Number of ringtones	2
Contains Batteries and/or Accumulator	No
Connected object	No
Programming way	Not applicable
With voice command	No
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	No
Product use function	Alarm systems
