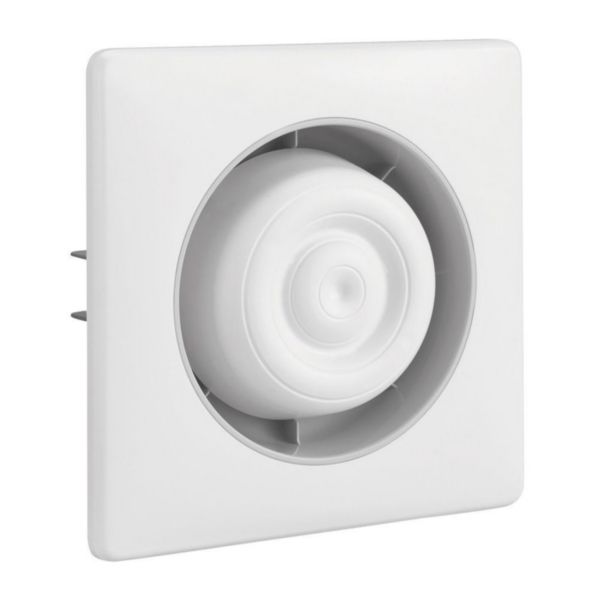

Diffuseur sonore classe B (90 dB) encastré

Name: Diffuseur sonore classe B (90 dB) encastré
SKU: UR-367210

URA

REF. UR-367210 EAN. 3613400154647

Compare You can only compare 4 products, you must remove 1 to add this one

Housing colour	Grey
Housing material	Plastic
Loudness	90 dB
Frequency sound signal (Min-Max)	440-554 Hz
Nominal voltage (Min-Max)	10-58 V
Type of current	DC
Degree of protection (IP)	IP21
Electricity consumption	0.013 A
Radio-controlled	No
Width	187 mm
Height	73 mm
Depth	122 mm

Built-in depth	80 mm
degree of impact strength (IK)	IK07
Operating / setting temperature (Min-Max)	-10-+55 °C
Storage temperature (Min-Max)	0-+55 °C
Halogen free	Yes
Connection type	Push-in clamp
Fitted with rainproof plate protection	No
With complemantary luminous signal	No
Mounting method	Flush-mounted
Vertical fixing center distance (Min-Max)	110-110 mm
Horizontal fixing center distance (Min-Max)	110-110 mm
Contains Batteries and/or Accumulator	No

1 document

Select all

Instruction Use

LE04008AC.pdf pdf (1.99 Mo)

3 documents

Select all

PEP

LGRP-00274-V01.01-FR.pdf pdf (0.13 Mo)

Agreement

NFSSI Composant-DS 033 A-A2_ (0.25 Mo)

Declaration of performance

DOP-0333-CPD-075318 (0.61 Mo)
