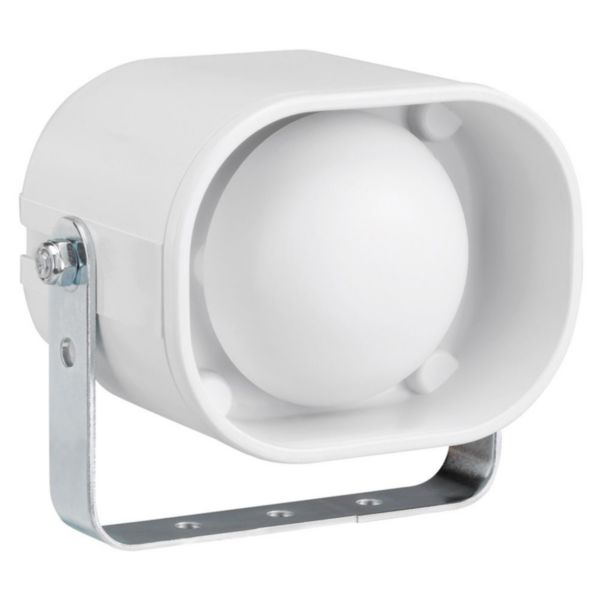

Diffuseur sonore classe C (105 dB)

Name: Diffuseur sonore classe C (105 dB)
SKU: UR-350020

URA

REF. UR-350020 EAN. 3613400151868

Compare You can only compare 4 products, you must remove 1 to add this one

Housing colour	White
Housing material	Plastic
Loudness	105 dB
Frequency sound signal (Min-Max)	440-554 Hz
Nominal voltage (Min-Max)	14-60 V
Type of current	DC
Degree of protection (IP)	IP54
Electricity consumption	0.25 A
Radio-controlled	No
Width	122 mm
Height	80 mm
Depth	135 mm

Built-in depth	0 mm
degree of impact strength (IK)	IK07
Operating / setting temperature (Min-Max)	-25-+70 °C
Storage temperature (Min-Max)	0-+55 °C
Halogen free	Yes
Connection type	Screwed terminal
Fitted with rainproof plate protection	No
With complemantary luminous signal	No
Mounting method	Surface mounted
Vertical fixing center distance (Min-Max)	48-48 mm
Horizontal fixing center distance (Min-Max)	48-48 mm
Contains Batteries and/or Accumulator	No

1 document

Select all

Instruction Use

LE03133-AA.pdf pdf (0.54 Mo)

1 document

Select all

Product Sheet

CP_350020-1.pdf pdf (0.29 Mo)

2 documents

Select all

Agreement

NFSSI Composant-DS 014 A-B1 (0.26 Mo)

Declaration of performance

DOP-0333-CPD-075358 (0.17 Mo)
