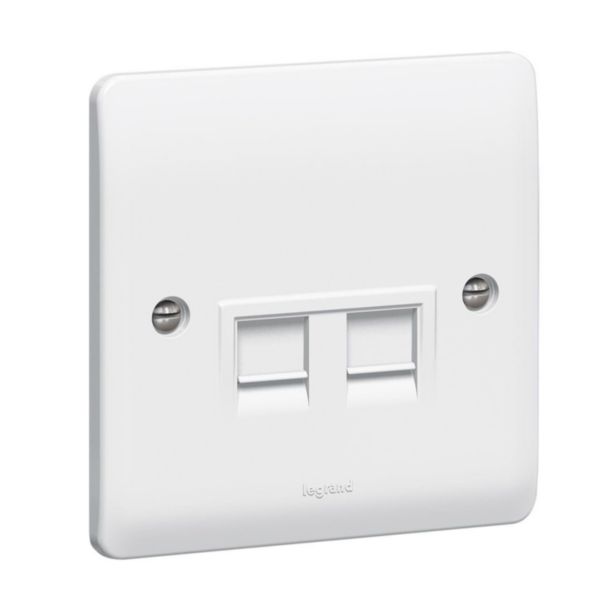

Name: Data socket Synergy - RJ 45 Cat.6 - twin - white
SKU: 730057

Data socket Synergy - RJ 45 Cat.6 - twin - white

Synergy™ LEGRAND

Data socket Synergy - RJ 45 Cat.6 - twin - white

REF. 730057 EAN. 3245067300572

Compare You can only compare 4 products, you must remove 1 to add this one

Synergy - telephone, data and TV sockets - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
Data sockets - Cat. 6 - Rapid cable connection - For flush-mounting, back box to be min. 35 mm deep - Nominal plate dimensions : 86 x 86 mm - RJ 45 twin

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Screwing
Assembly arrangement	Basic element with full cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	2
Category	6
Colour	White
RAL-number	9003
Connection type	Insulation displacement connector
Shielded buses	No
Separate earthing connection	No
With label space	No
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	Yes

Degree of protection (IP)	IP2X
Mechanical coding	No
Colour coding	Yes
Device width	86 mm
Device height	86 mm
Device depth	32.2 mm
Built-in depth	25.2 mm
degree of impact strength (IK)	IK01
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Tube diameter for wall mounted product	0-0 mm
Maximum Input cable diameter	9 mm
Entry membrane gland type	Not applicable
Vertical fixing center distance	0-0 mm
Horizontal fixing center distance	0-0 mm
Cable support	Not applicable
