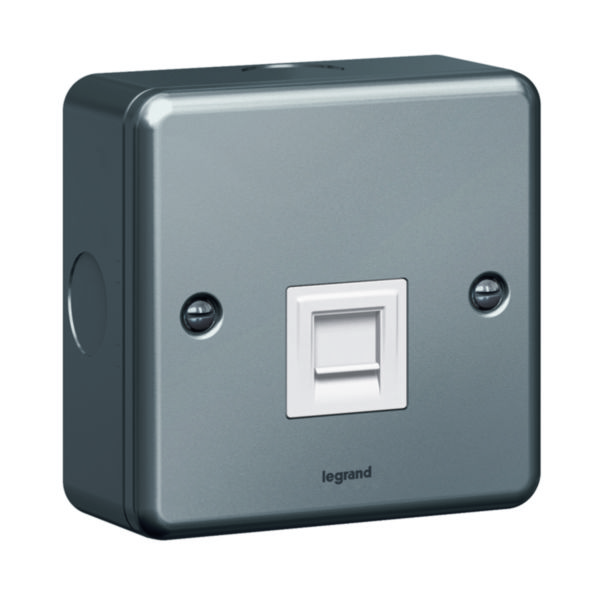

Data socket Synergy - RJ 45 Cat.6 - single - metalclad

Name: Data socket Synergy - RJ 45 Cat.6 - single - metalclad
SKU: 733856

Synergy™ LEGRAND

REF. 733856 EAN. 3245067338568

Compare You can only compare 4 products, you must remove 1 to add this one

Synergy - switches, television, telephone, data sockets , blanking plates and cable outlets - Metalclad - Front plates : grey epoxy coated steel - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Supplied complete with close fit 43 mm deep surface - mounting back box
Data sockets Cat. 6 - Rapid cable connection - Flush-mounting back box : min. 35 mm deep - Nominal plate dimensions : 86 x 86 mm - RJ 45 single

Surface mounting	Yes
Flush-mounted installation	No
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Screwing
Assembly arrangement	Basic element with full cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6
Colour	Other
RAL-number	0
Connection type	Other
Shielded buses	No
Separate earthing connection	No
With label space	No
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	Yes

Degree of protection (IP)	IP20
Colour coding	Yes
Device width	86 mm
Device height	86 mm
Device depth	43 mm
Built-in depth	0 mm
degree of impact strength (IK)	IK08
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Surface mounted
Tube diameter for wall mounted product (Min-Max)	20-20 mm
Maximum Input cable diameter	20 mm
Entry membrane gland type	Rigid to break
Vertical fixing center distance (Min-Max)	34-60 mm
Horizontal fixing center distance (Min-Max)	34-60 mm
Cable support	Not applicable
