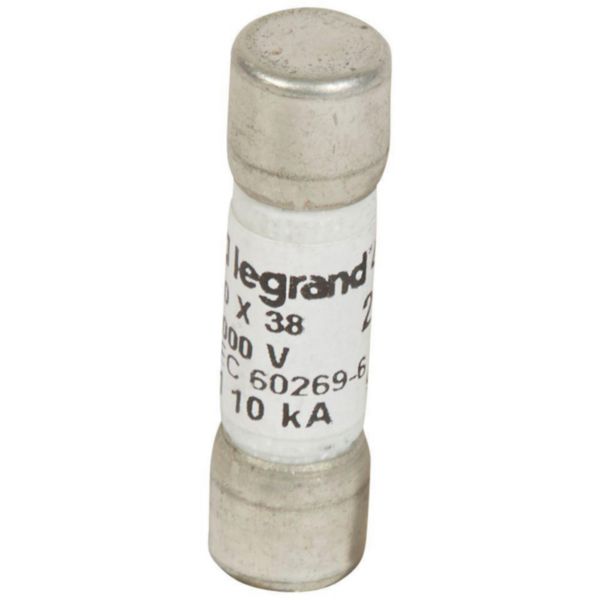

Cylindrical Fuse - Ceramic Cartridge Fuse - 10x38mm - 20A - 1000V DC - gPV Photovoltaic Protection - IEC 60269-6 Compliance

Legrand

Cylindrical Fuse - Ceramic Cartridge Fuse - 10x38mm - 20A - 1000V DC - gPV Photovoltaic Protection - IEC 60269-6 Compliance

REF. 414630 EAN. 3245064146302
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Ceramic fuse
Size 10x38 mm
Rated current 20 A
Depth 38 mm
Width 10 mm
Voltage type DC
Utilization category according to IEC 60269 GPV
Type of fuse status indicator Other
Power loss at rated current 1.09 W
Operating / setting temperature (Min-Max) -25-40 °C
Storage temperature (Min-Max) -40-70 °C

Documentation

2 documents
Technical Sheet
F01249FR01.pdf pdf (0.51 Mo)
Technical Sheet
F01249EN01.pdf pdf (0.71 Mo)
1 document
PEP
LGRP-2015-304-V1-EN.pdf pdf (0.66 Mo)
