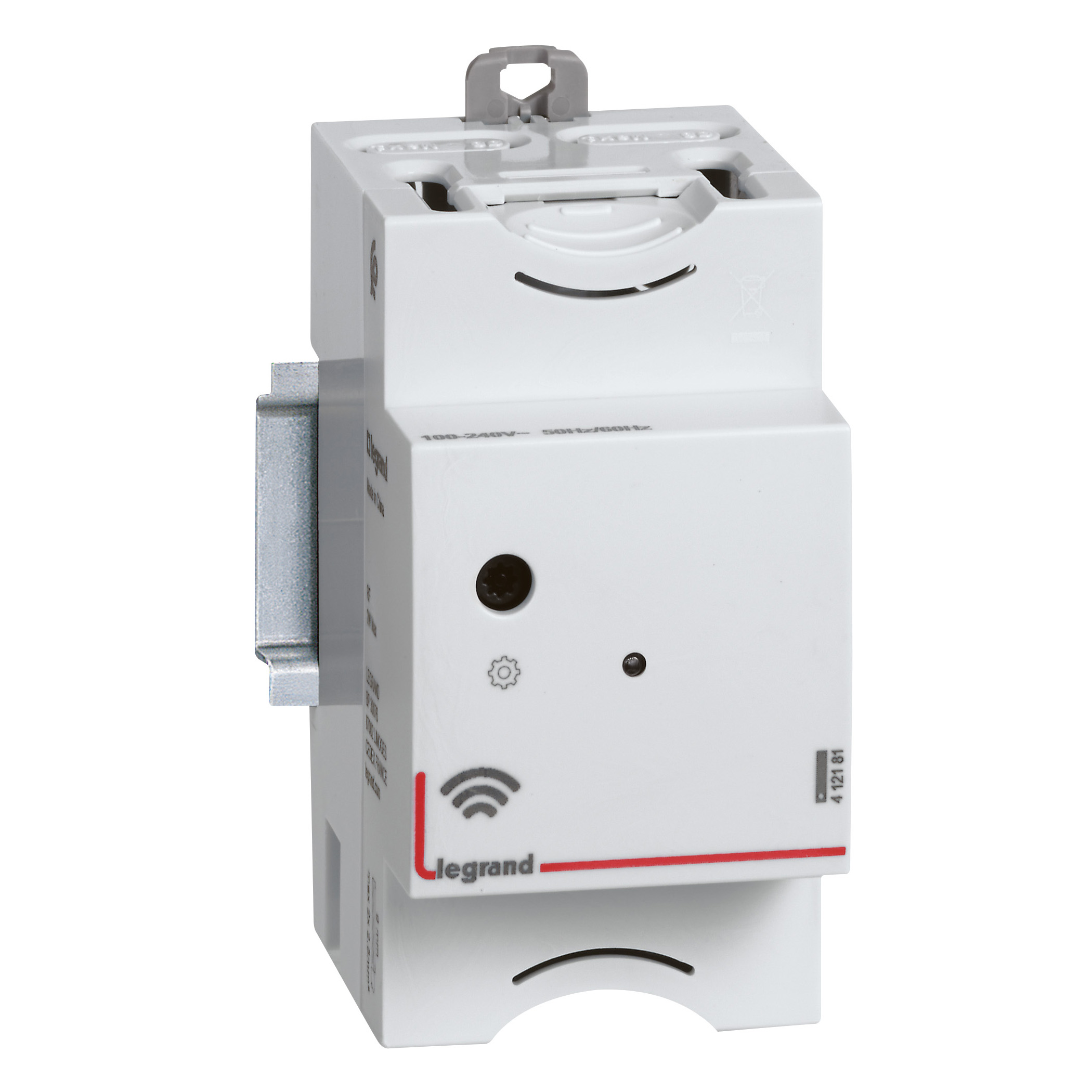

CX³ With Netatmo - Zigbee-Wi-Fi modular gateway - DIN-rail mounting - 100-240V AC - Bidirectional radio frequency

Name: CX³ With Netatmo - Zigbee-Wi-Fi modular gateway - DIN-rail mounting - 100-240V AC - Bidirectional radio frequency
SKU: 412181B

CX³ with Netatmo Legrand

REF. 412181B EAN. 3414973088281

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Radio frequency bidirectional	Yes
Model	Multiple interface
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	2.5
Demounting protection	No
With LED indication	Yes
Updateable	Yes
Operating voltage (Min-Max)	100-240 V
Voltage type	AC
Protocol	TCP/IP
Provider dependent	No
Visualization	No
Web-Server	No
Radio interface	Yes
IR interface	No

Degree of protection (IP)	IP3X
Width	45 mm
Height	88.9 mm
Depth	67.2 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-40-70 °C
Supply current (Min-Max)	0.01-0.02 A
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Screwed terminal , Cable
Terminals capacity (Min-Max)	1-2.5 mm²
Label space/information surface	Yes
Fitted with USB plug	No
Addressable	Yes
Connected object	Yes
Application store for download	Multistore
Connectable by Internet box	Yes
Application name	Home + Control

6 documents

Select all

Instruction Use

LE15596_RO.pdf pdf (1.63 Mo)

Instruction Use

LE15596AA-EN.pdf pdf (1.66 Mo)

Instruction Use

LE15596_PL.pdf pdf (1.66 Mo)

Technical Sheet

F04582FR-00.pdf pdf (2.2 Mo)

Technical Sheet

F04582RO-00.pdf pdf (1.36 Mo)

Technical Sheet

F04582EN-00.pdf pdf (2.23 Mo)

1 document

Select all

Agreement

Decl. UE RED-10-642 02 (0.07 Mo)
