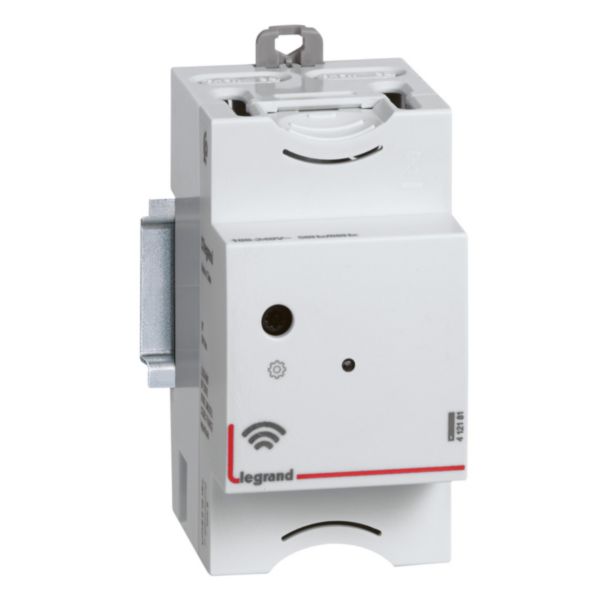

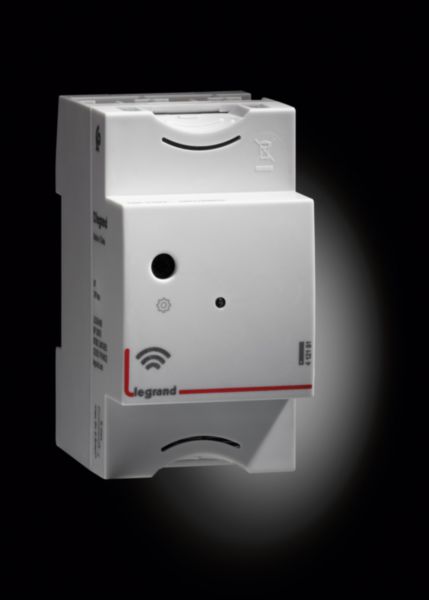

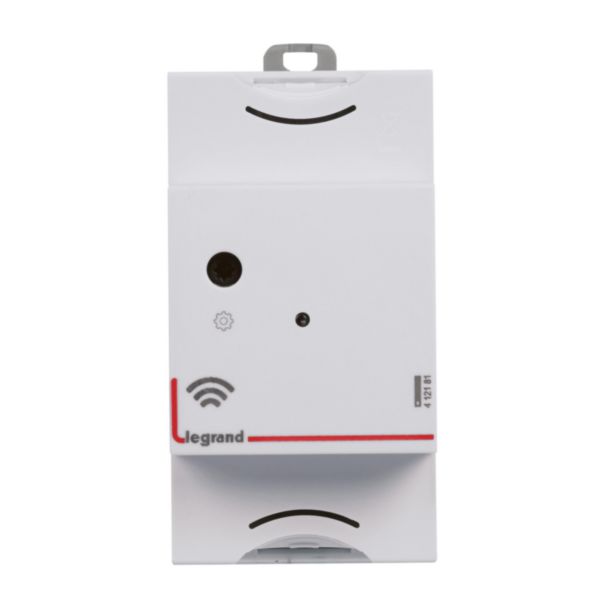

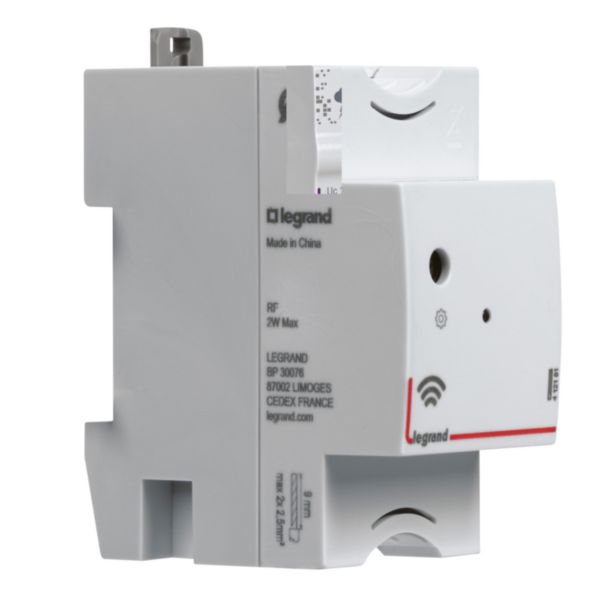

Name: CX³ with Netatmo Module Control
SKU: 412181

CX³ with Netatmo Module Control

CX³ with Netatmo Legrand

CX³ with Netatmo Module Control

REF. 412181 EAN. 3414971795600

Compare You can only compare 4 products, you must remove 1 to add this one

A WiFi connection via your Internet home box is required. Upgrade you smart home by adding other Legrand "with Netatmo offers":other electrical panelboard modules, switches & power outlets, wireless on-wall switches ....
WiFi 2,4 GHz 802.11 b/g/n Open/WEP/WPA/WPA 2-personal (TKIP and AES)
Compatible with Apple Home Kit, Google Assistant and Amazon Alexa.

The Module Control can be easily installed in any standard DIN panelboard. Each house you wish to connect requires the installation of a single Control module on the electrical panel.

Define one or more schedules for remotely controlling on and off your appliances and monitor their consumption from your smartphone.

Plan your energy savings! Define one or more schedules for switching your appliances on and off, very easily from the Home + Control app.
In Home+Control app, get the possibility to create personalized scenario: daily/weekly/specific avent such as “holidays” ...

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Radio frequency bidirectional	Yes
Model	Multiple interface
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	2.5
Demounting protection	No
With LED indication	Yes
Updateable	Yes
Operating voltage	240-240 V
Voltage type	AC
Protocol	TCP/IP
Provider dependent	No
Visualization	No
Web-Server	No
Radio interface	Yes
IR interface	No

Degree of protection (IP)	IP3X
Width	45 mm
Height	88.9 mm
Depth	67.2 mm
degree of impact strength (IK)	IK04
Operating / setting temperature	-5-45 °C
Storage temperature	-40-70 °C
Supply current	0.01-0.02 A
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Screwed terminal , Cable
Terminals capacity	1-2.5 mm²
Label space/information surface	Yes
Fitted with USB plug	No
Addressable	Yes
Connected object	Yes
Application store for download	Multistore
Connectable by Internet box	Yes
