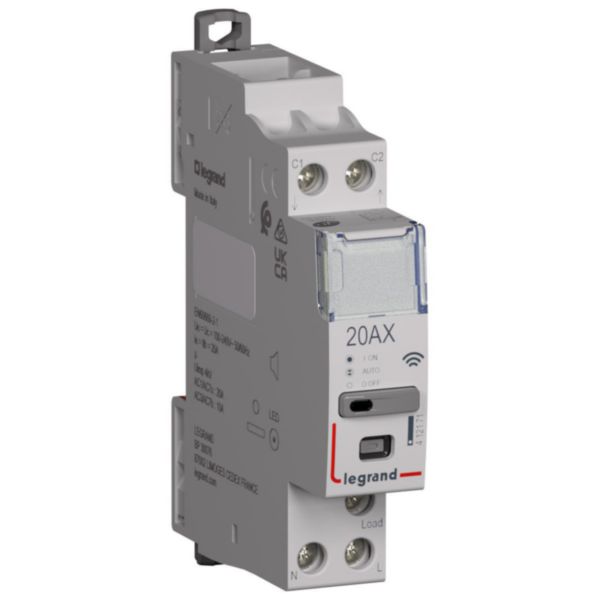

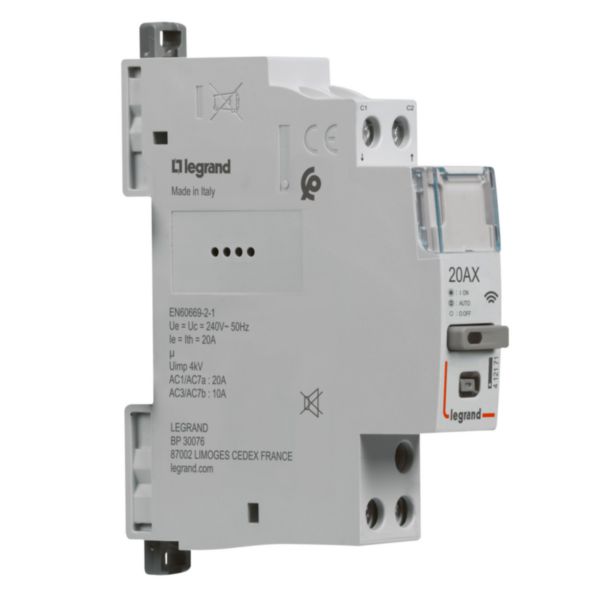

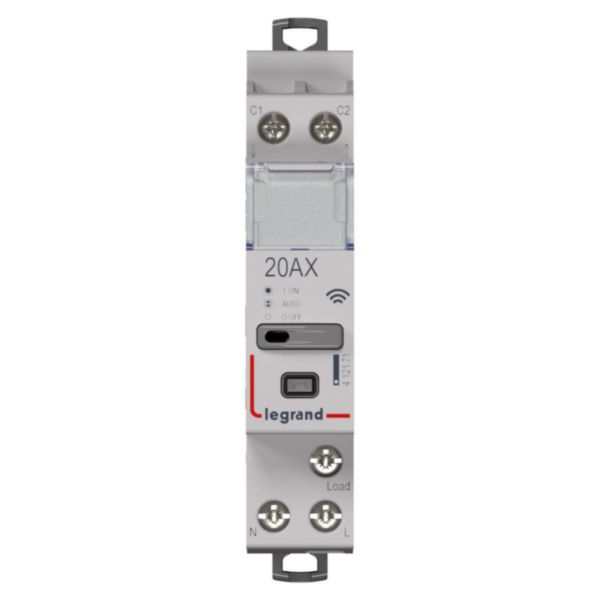

Name: CX³ with Netatmo Connected 20A Contactor closing contacts, Silent switch, 240V/ 50Hz
SKU: 412171

CX³ with Netatmo Connected 20A Contactor closing contacts, Silent switch, 240V/ 50Hz

CX³ with Netatmo Legrand

CX³ with Netatmo Connected 20A Contactor closing contacts, Silent switch, 240V/ 50Hz

REF. 412171 EAN. 3414971795563

Compare You can only compare 4 products, you must remove 1 to add this one

20A/ Closing contacts type, Silent switch, 240V/ 50Hz
Self - protected upstream control terminals : no need for 2A circuit breaker or fuse protection to protect them.
Fit anykind of power hungry appliances such as : water heater swimming pool pomp heaters, charging socket for electric cars …
Compatible with the load shedding scenario. Works with the Connected Load Shedder 412172

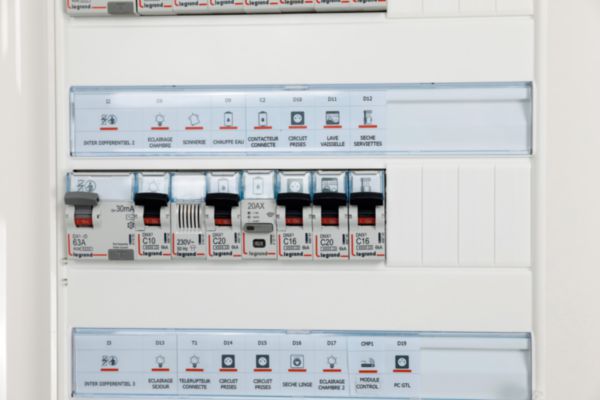

Can replaces an existing modular contactor.

Requires beforehand the installation of a "With Netatmo" gateway such as for example the Control module, the Power-outlet gateway, etc… When working on electricity for your safety turn-off the main protection device in the electrical panel-board.
20A/ Closing contacts type, Silent switch, 240V/ 50Hz
Self-protected upstream control terminals: no need for 2A circuit breaker or fuse protection to protect them.

Easy cabling part. All configuration steps are done within the smartphone app Home + Control

Energy consumption: information is automatically available for the circuit to whom the smart contactor is wired to.

Ultra compact: One module wide
Native integration with leading smart home ecosystem environments and voice assistants.
Part of the Legrand Connected Home environement. Works with Home+ Control smartphone app

Rated operating voltage (Min-Max)	240-240 V
Rated operation current	20 A
Voltage type (operating voltage)	AC
Number of contacts as normally open contact	1
Slider for hand switch	No
Width in number of modular spacings	1
Additional equipment possible	No
Degree of protection (IP)	IP3X
Width	17.8 mm
Height	95.9 mm
Depth	70.1 mm
degree of impact strength (IK)	IK04

Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-40-70 °C
Frequency (Min-Max)	50-50 Hz
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Terminals capacity (Min-Max)	0.75-6 mm²
Connection type	Cable
Label space/information surface	Yes
Mounting method	DIN rail
