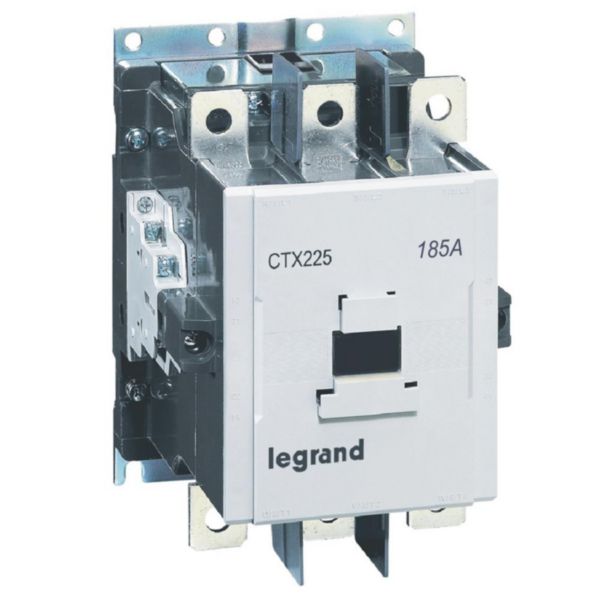

CTX³ - 3-pole contactors - 185A AC-3 rating - Screw terminals - 2NO+2NC auxiliary contacts

CTX³ LEGRAND

CTX³ - 3-pole contactors - 185A AC-3 rating - Screw terminals - 2NO+2NC auxiliary contacts

REF. 416280 EAN. 3414970403445

Legrand CTX³ contactor : 185A AC-3, 90kW/415V, 2NO+2NC auxiliary contacts, IEC 60947-4-1, 5M mech ops, AC/DC actuation, for industrial use.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand CTX³ contactor : 185A AC-3, 90kW/415V, 2NO+2NC auxiliary contacts, IEC 60947-4-1, 5M mech ops, AC/DC actuation, for industrial use.

Product characteristics
  • Rating 185A (AC - 3) for the switching of 3 - ph motors up to 90 kW (415V). Resistive loads up to 230A (AC - 1).
  • Screw terminals capacity : Power 50mm² to 95mm² / Coil 1,25mm² to 5,5mm² / Aux. Circuit 1,25mm² to 5,5mm²
  • 2NO + 2NC auxiliary contacts. NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard.Can be equipped with all Legrand CTX3 auxiliaries and Accessories .
  • Endurance: up to 5 million mechanical operations and 1 million electrical operations. Number of operation cycles (AC-3) per hour : 1200.
  • The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendation / Restriction
  • Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads.Read the instructions before installing this product.Use only Legrand branded accessories.

The product's benefits

Installation
  • Fixing on mounting plate.
Usage
  • Fitted with 2NO + 2NC auxiliary contacts, factory assembled. Engineered to allow an easy replacement of the coil.
Avantages
  • Removable front cover for the visual inspection of arc chambers and contacts

Technical characteristics

Rated control supply voltage AC 50 Hz (Min-Max) 20.4-26.4 V
Rated control supply voltage AC 60 Hz (Min-Max) 20.4-26.4 V
Rated control supply voltage DC (Min-Max) 20.4-26.4 V
Voltage type for actuating AC/DC
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Type of electrical connection of main circuit Screw connection
Rated operation current Ie at AC-1, 400 V 230 A
Rated operation current Ie at AC-3, 400 V 185 A
Rated operation power at AC-3, 400 V 90 kW
Rated operation current Ie at AC-4, 400 V 150 A
Rated operation power at AC-4, 400 V 75 kW
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Suitable for distribution board No

Documentation

4 documents
Technical Sheet
F01990FR-05 .pdf pdf (2.88 Mo)
Technical Sheet
F01990EN-05.pdf pdf (3.71 Mo)
Technical Guide
Instruction Use
LE07228AB.pdf pdf (2.38 Mo)
4 documents
Catalogue Technical Page
ex223001_0290-0291.pdf pdf (0.41 Mo)
Catalogue Technical Page
ex223001_0288-0289.pdf pdf (0.1 Mo)
Catalogue Technical Page
ex223001_0292-0293.pdf pdf (0.62 Mo)
Catalogue Commercial Page
ex223001_0283.pdf pdf (0.11 Mo)
1 document
3D Autocad
416280.dwg dwg (0.24 Mo)
1 document
PEP
LGRP-00209-V01.01-EN.pdf pdf (0.73 Mo)
