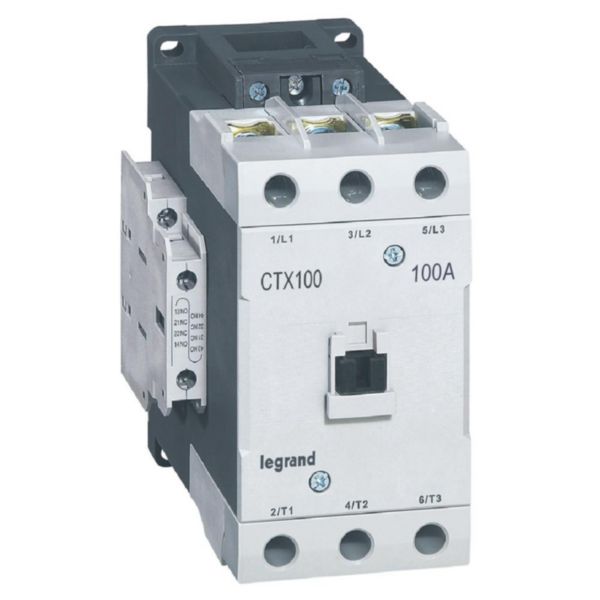

CTX³ - 3-pole contactors - 100A AC-3 rating - Screw terminals - Modular version

CTX³ LEGRAND

CTX³ - 3-pole contactors - 100A AC-3 rating - Screw terminals - Modular version

REF. 416229 EAN. 3414970402424

Legrand CTX³ contactor : 3-pole, 100A AC-3, 55 kW at 415V, 2NO+2NC auxiliary contacts, up to 12M mech operations, IEC 60947-4-1, 35mm rail mount.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Legrand CTX³ contactor : 3-pole, 100A AC-3, 55 kW at 415V, 2NO+2NC auxiliary contacts, up to 12M mech operations, IEC 60947-4-1, 35mm rail mount.

Product characteristics
  • Rating 100A (AC - 3) for the switching of 3 - ph motors up to 55 kW (415V). Resistive loads up to 160A (AC - 1).
  • Screw terminals capacity : Power 2 x 10mm² to 70mm² / Coil 0,75mm² to 2,5mm² / Aux. Circuit 0,75mm² to 2,5mm²
  • 2NO + 2NC auxiliary contacts. NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard. Can be equipped with all Legrand CTX3 auxiliaries and Accessories .
  • Endurance: up to 12 million mechanical operations and 2 million electrical operations. Number of operation cycles (AC-3) per hour : 1800.
  • The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendation / Restriction
  • Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

The product's benefits

Installation
  • Possible fixing on 35 mm "top hat" mounting rail (IEC 60715) and on mounting plate. Reduced size to optimize the space available in the cabinet.
Usage
  • Fitted with 2NO + 2NC auxiliary contacts, factory assembled. Engineered to allow an easy replacement of the coil.
Avantages
  • Coil supply possible either on the top or on the botton side.
  • Removable front cover for the visual inspection of arc chambers and contacts

Technical characteristics

Rated control supply voltage AC 50 Hz 352.75-456.5 V
Rated control supply voltage AC 60 Hz 352.75-456.5 V
Voltage type for actuating AC
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Type of electrical connection of main circuit Cable clamp
Rated operation current Ie at AC-1, 400 V 160 A
Rated operation current Ie at AC-3, 400 V 105 A
Rated operation power at AC-3, 400 V 55 kW
Rated operation current Ie at AC-4, 400 V 75 A
Rated operation power at AC-4, 400 V 37 kW
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Suitable for distribution board Yes
