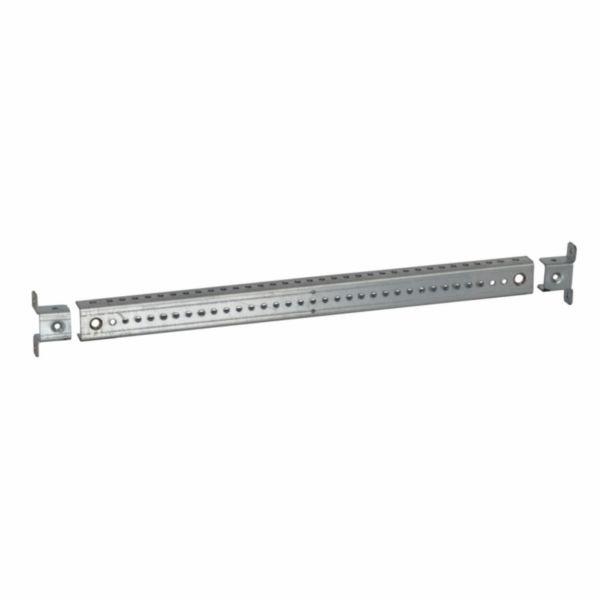

Crosspiece for XL³ S 630 36 modules enclosures

XL³ S 630 LEGRAND

Crosspiece for XL³ S 630 36 modules enclosures

REF. 337982 EAN. 3414971003026
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Composed of fixing lugs, perforated bar and fixing screws
Recommendation / Restriction
  • Internal use only

The product's benefits

Installation
  • Thanks to crosspieces, it's possible to install the same part n° of busbar supports in the different XL3 S 630 enclosures' sizes

Technical characteristics

Model Support rail
Suitable for enclosure building width 800 mm
Suitable for enclosure building depth 300 mm
Width 750 mm
Height 50 mm
Depth 50 mm
Material Metal

Documentation

3 documents
Workshop Book
EXB22023.pdf pdf (97.63 Mo)
Instruction Use
LE09740AB.pdf pdf (0.95 Mo)
Workshop Book
EXB18032.pdf pdf (100.56 Mo)
1 document
Catalogue Commercial Page
ex223001_0342.pdf pdf (0.09 Mo)
