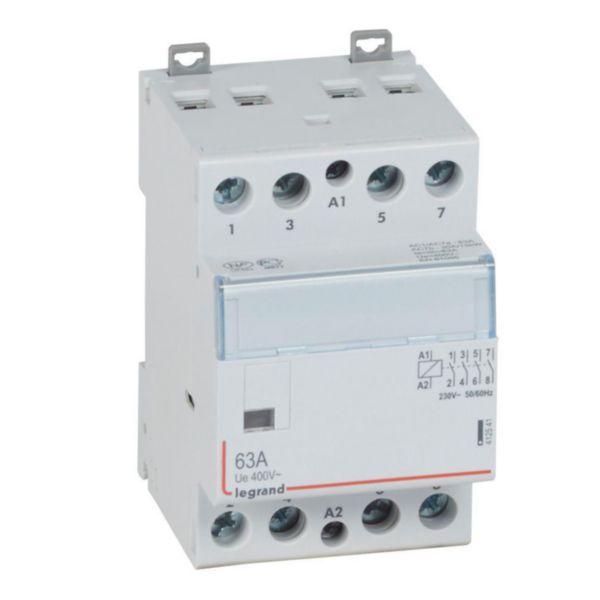

Name: Contactor CX³ without front face handle 4 pole - 63A - 400V~ - 4NO contacts with 230V~ coil - 3 modules
SKU: 412541

Contactor CX³ without front face handle 4 pole - 63A - 400V~ - 4NO contacts with 230V~ coil - 3 modules

CX³ LEGRAND

Contactor CX³ without front face handle 4 pole - 63A - 400V~ - 4NO contacts with 230V~ coil - 3 modules

REF. 412541 EAN. 3245064125413

Compare You can only compare 4 products, you must remove 1 to add this one

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Rated operating voltage	400-400 V
Rated operation current	63 A
Rated excitation voltage	195-253 V
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Number of contacts as normally open contact	4
Number of contacts as normally closed contact	0
Max. incandescent lamp load	8000 W
Max. load fluorescent lamp	4700 VA
Max. load fluorescent lamp (Duo circuit)	5000 VA

Max. load fluorescent lamp (parallel compensated)	1700 VA
Slider for hand switch	Yes
Width in number of modular spacings	3
Built-in depth	44 mm
Additional equipment possible	Yes
Degree of protection (IP)	IP2X
Width	68 mm
Height	94 mm
Depth	53.4 mm

Contactor CX³ without front face handle 4 pole - 63A - 400V~ - 4NO contacts with 230V~ coil - 3 modules
