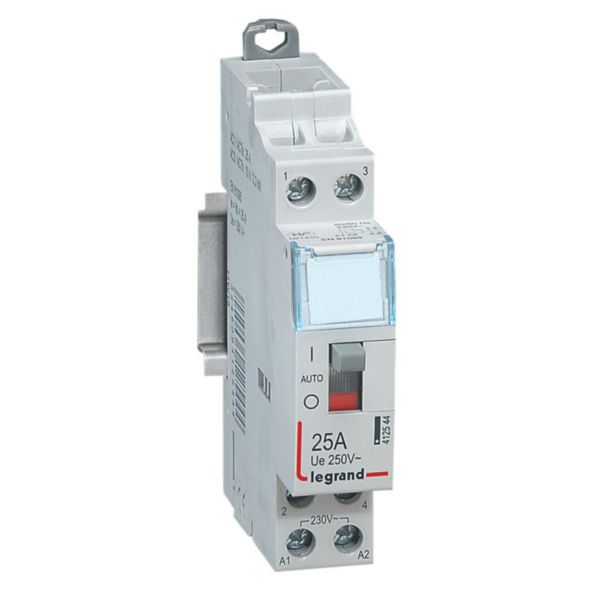

Name: Contactor CX³ with front face handle 2 pole - 25A - 250V~ - 2 NO contacts with 230V~ coil - 1 module
SKU: 412544

Contactor CX³ with front face handle 2 pole - 25A - 250V~ - 2 NO contacts with 230V~ coil - 1 module

CX³ LEGRAND

Contactor CX³ with front face handle 2 pole - 25A - 250V~ - 2 NO contacts with 230V~ coil - 1 module

REF. 412544 EAN. 3245064125444

Compare You can only compare 4 products, you must remove 1 to add this one

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Easy integration: fitted with two DIN rail clamps, one top side and one bottom side to ease the clipping. Allows the insertion of prong busbar at the top side.

Equipped with a front face handle to get the possibility to also control it on-site directly on the device itself (test and repair function). Permanent ON or OFF wihout automatic reset.Also Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.

Rated operating voltage	250-250 V
Rated operation current	25 A
Rated excitation voltage	195-253 V
Druh napětí (provozního napětí)	AC
Voltage type (excitation voltage)	AC
Number of contacts as normally open contact	2
Počet rozpínacích kontaktů	0
Max. incandescent lamp load	3000 W
Max. load fluorescent lamp	2100 VA
Max. load fluorescent lamp (Duo circuit)	2200 VA
Max. zatížení zářivky (paralelně kompenzované)	1000 VA
Slider for hand switch	Yes
Šířka v počtu modulových míst	1
Vestavná hloubka	44 mm
Additional equipment possible	Yes
Stupeň krytí (IP)	IP2X

Šířka	17.8 mm
Height	94.9 mm
Depth	72.6 mm
Rázová pevnost	IK04
Operating / setting temperature	-25-60 °C
Storage temperature	-40-70 °C
Frekvence	50-60 Hz
Terminal marking indication	Yes
Barva	Grey
Číslo RAL	7035
Bez halogenů	Yes
Terminals capacity	0.75-6 mm²
Connection type	Cable
Textové pole/popisovací plocha	Yes
Způsob montáže	DIN rail
