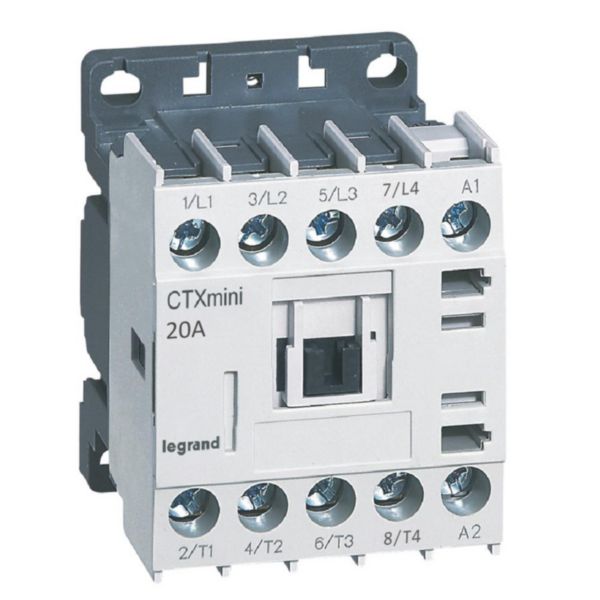

Name: Contactor CTX3 mini 4P 16A 415V AC
SKU: 417149

Contactor CTX3 mini 4P 16A 415V AC

CTX³ LEGRAND

Contactor CTX3 mini 4P 16A 415V AC

REF. 417149 EAN. 3414970404695

Compare You can only compare 4 products, you must remove 1 to add this one

Rating : 20A (AC - 1).
Screw terminals capacity : Power 2 x 1,25mm² to 2mm² / Coil 0,75mm² to 2,5mm134
High durability : up to 12 million mechanical operations and 1 million electrical operations. Number of operation cycles (AC - 3) per hour : 1800,
This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

Rated control supply voltage AC 50 Hz	352.75-456.5 V
Rated control supply voltage AC 60 Hz	352.75-456.5 V
Voltage type for actuating	AC
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	4

Type of electrical connection of main circuit	Cable clamp
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-3, 400 V	16 A
Rated operation power at AC-3, 400 V	7.5 kW
Suitable for distribution board	Yes
