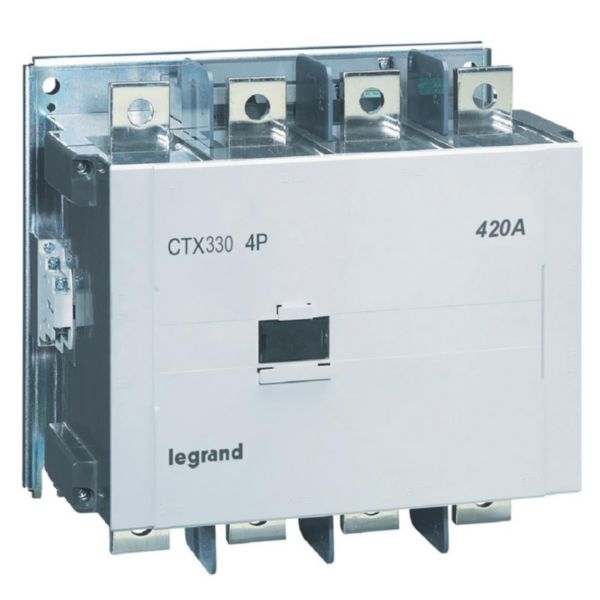

Name: Contactor CTX3 4P 420A 100V-240V AC / 100V-220V DC
SKU: 416496

Contactor CTX3 4P 420A 100V-240V AC / 100V-220V DC

CTX³ LEGRAND

Contactor CTX3 4P 420A 100V-240V AC / 100V-220V DC

REF. 416496 EAN. 3414970403773

Compare You can only compare 4 products, you must remove 1 to add this one

Rating 420A (AC - 1) for switching resistive loads.
Screw terminals capacity : Power 95mm² to 240mm² / Coil 1,25mm² to 5,5mm² / Aux. Circuit 1,25mm² to 5,5mm²
Can be equipped with all Legrand CTX3auxiliaries and Accessories .
Endurance: up to 2,5 million mechanical operations and 0,5 million electrical operations. Number of operation cycles (AC-1) per hour : 1200.
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

Fitted with 2NO + 2NC auxiliary contacts, factory assembled. Engineered to allow easy coil replacement.

Rated control supply voltage AC 50 Hz	85-264 V
Rated control supply voltage AC 60 Hz	85-264 V
Rated control supply voltage DC	85-242 V
Voltage type for actuating	AC/DC
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	4
Type of electrical connection of main circuit	Screw connection

Rated operation current Ie at AC-1, 400 V	420 A
Rated operation current Ie at AC-3, 400 V	330 A
Rated operation power at AC-3, 400 V	160 kW
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Suitable for distribution board	No
