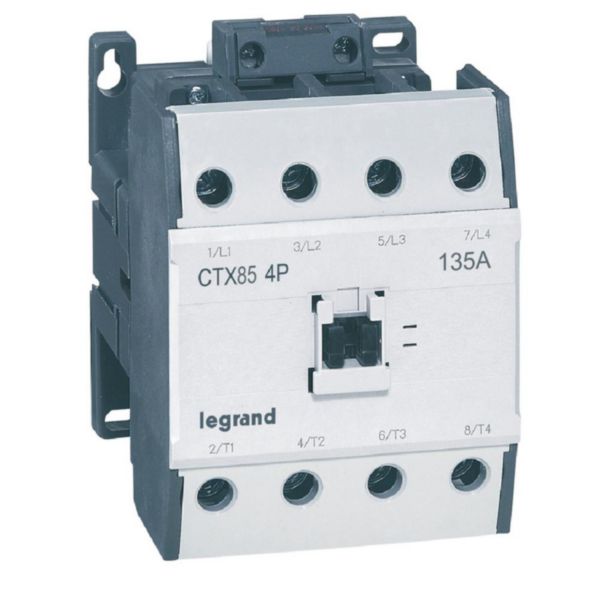

Name: Contactor CTX3 4P 135A 230V AC
SKU: 416456

Contactor CTX3 4P 135A 230V AC

CTX³ LEGRAND

Contactor CTX3 4P 135A 230V AC

REF. 416456 EAN. 3414970403728

Compare You can only compare 4 products, you must remove 1 to add this one

Rating 135A (AC - 1) for switching resistive loads.
Screw terminals capacity : Power 2 x 25mm² to 50mm² / Coil 0,75mm² to 2,5mm²
Can be equipped with all Legrand CTX3auxiliaries and Accessories .
Endurance: up to 12 million mechanical operations and 1 million electrical operations. Number of operation cycles (AC-1) per hour : 1800.
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the switching of inductive and non-inductive loads. Read the instructions before installing this product. Use only Legrand branded accessories.

Possible fixing on 35 mm "top hat" mounting rail (IEC 60715) and on mounting plate. Reduced size to optimize the space available in the cabinet.

Rated control supply voltage AC 50 Hz	195.5-253 V
Rated control supply voltage AC 60 Hz	195.5-253 V
Voltage type for actuating	AC
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	4
Type of electrical connection of main circuit	Cable clamp

Rated operation current Ie at AC-1, 400 V	135 A
Rated operation current Ie at AC-3, 400 V	85 A
Rated operation power at AC-3, 400 V	45 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Suitable for distribution board	Yes
