Connecting terminal block, screw connection, 1 connection 2entry/2outlets diode, Cross-section 4mm² - pitch 5mm -grey
Viking 3
LEGRAND

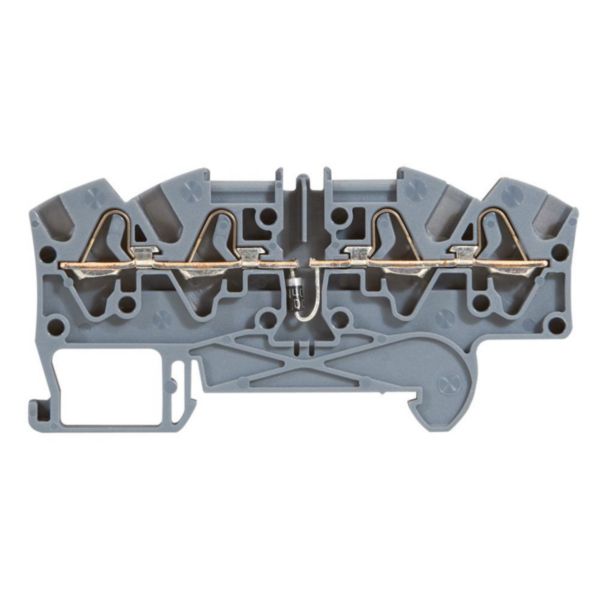

Connecting terminal block, screw connection, 1 connection 2entry/2outlets diode, Cross-section 4mm² - pitch 5mm -grey
REF. 037254
EAN.
3245060372545
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-6 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section solid-core | 0.5-6 mm² |
| Connectable conductor cross section multi-wired | 0.5-4 mm² |
| Rated current In | 1 A |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 4 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Inflammability class of insulation material according to UL94 | V2 |
| Width | 5 mm |
| Height | 42 mm |
| Depth | 85 mm |
| Explosion-tested version 'Ex e' | No |
| Closing plate required | Yes |
| Colour | Grey |
| Internally connected stages | No |
Documentation
3 documents
Catalogue Technical Page
Catalogue Commercial Page
Catalogue Technical Page
4 documents
Agreement
UL recogn-20100921-E60900
(0.15 Mo)
Agreement
VERITAS (BV)-23393/C0 BV
(0.61 Mo)
Agreement
IMQ-CA02.04199
(0.88 Mo)
Agreement
NF App Domestic-NF208_1012
(1.06 Mo)
