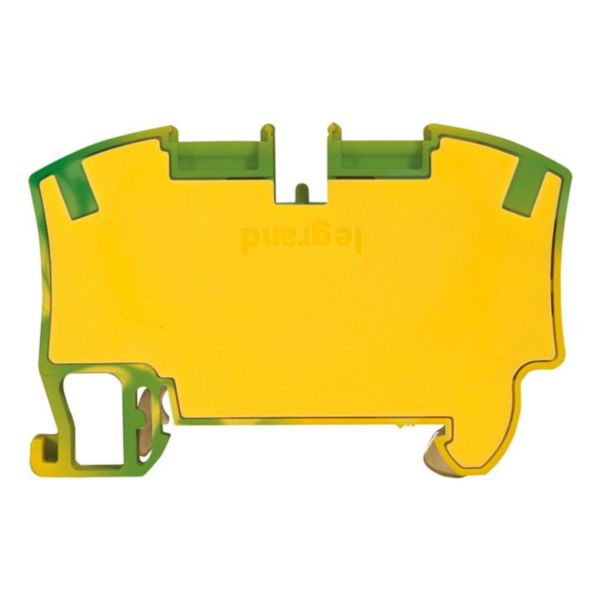

Name: Connecting terminal block, screw connection, 1 connection 1entry/1outlets , Cross-section 4mm² -pitch 10mm -yellow/green
SKU: 037273

Connecting terminal block, screw connection, 1 connection 1entry/1outlets , Cross-section 4mm² -pitch 10mm -yellow/green

Viking 3 LEGRAND

Connecting terminal block, screw connection, 1 connection 1entry/1outlets , Cross-section 4mm² -pitch 10mm -yellow/green

REF. 037273 EAN. 3245060372736

Compare You can only compare 4 products, you must remove 1 to add this one

Green/yellow terminal blocks are recommended for protection conductors.
Direct tool - free insertion of a rigid wire or a flexible wire with ferrules, up to 6mm pitch
2 areas for automatic insertion bridging combs (upper level only for multi-level terminal blocks)
Easy insertion of conductors thanks to the ergonomic shape of the entry and outlet.

Installation recommended for electrical connection in industrial and tertiary cabinets and enclosures.

A securing pin on the insulating body holds the Viking 3 terminal blocks together for ease of handling and perfect alignment on the rail. The assembly/disassembly of a terminal block is still possible without removing the adjacent terminal blocks

Terminal blocks have two marking zones per level allowing a clear, visible and convenient identification of the circuit.

Connectable conductor cross section fine-strand without cable end sleeve	0.75-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-10 mm²
Connectable conductor cross section solid-core	0.75-10 mm²
Connectable conductor cross section multi-wired	0.75-10 mm²
Rated current In	57 A
Rated voltage	800 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Mounting method	DIN rail (top hat rail) 35 mm

Material insulation body	Thermoplastic
Operating temperature	-5-40 °C
Inflammability class of insulation material according to UL94	V2
Width	10 mm
Height	49 mm
Depth	74.5 mm
Explosion-tested version 'Ex e'	Yes
Closing plate required	No
Colour	Green/yellow
Internally connected stages	No
