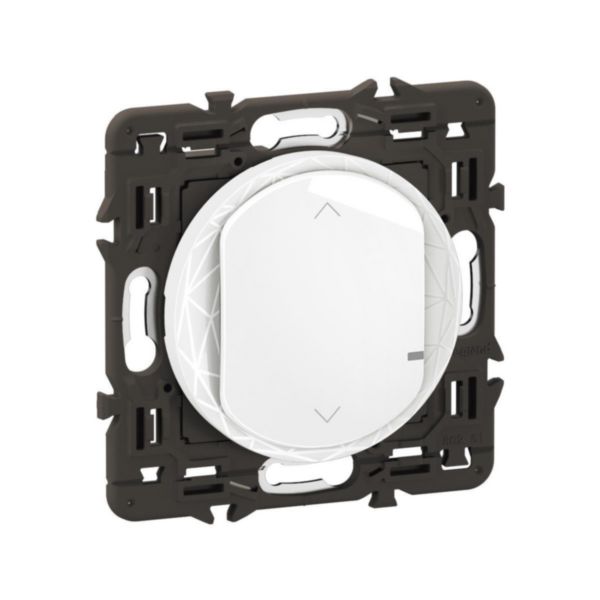

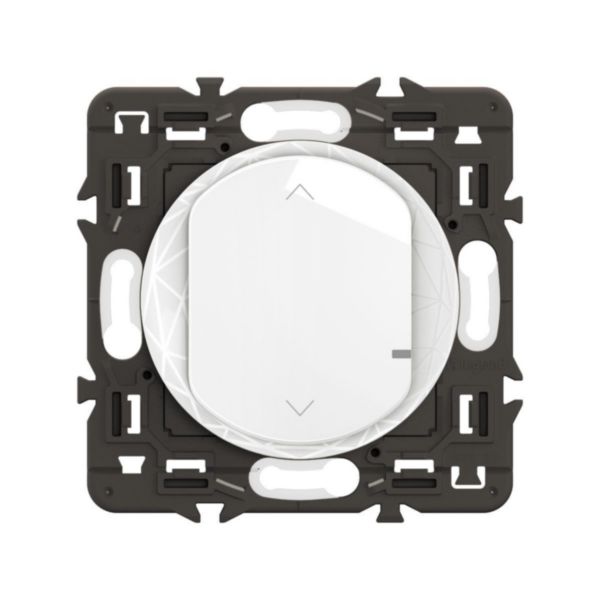

Name: Connected shutter switch with neutral Céliane - White
SKU: CB0431

Connected shutter switch with neutral Céliane - White

Legrand

Connected shutter switch with neutral Céliane - White

REF. CB0431 EAN. 3414972453615

Finition :

Black

Titanium

White

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Zigbee
Radio frequency bidirectional	Yes
Mounting method	Flush-mounted
Width in number of modular spacings	2
With bus connection	No
Bus module detachable	No
Local operation/hand operation	Yes
With LED indication	Yes
Number of inputs	4
Switching current (resistive)	2 A
Max. switching power	500 W
Max. number of venetian-blind outputs	1
With switch function	Yes
Type of current	AC
Degree of protection (IP)	IP41
Min. depth of built-in installation box	40 mm
Width	74 mm
Height	74 mm
Depth	46 mm
Built-in depth	33 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C

Storage temperature (Min-Max)	0-45 °C
Nominal voltage (Min-Max)	110-230 V
Frequency (Min-Max)	50-60 Hz
Standby consumption	2.1 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Colour	White
RAL-number	9003
Halogen free	Yes
Antimicrobial treatment	No
Connection type	Screwed terminal
Number of terminals	4
Terminals capacity (Min-Max)	1.5-2.5 mm²
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Shutter management
Application name	Home + Control
Programming way	Smartphone apps
