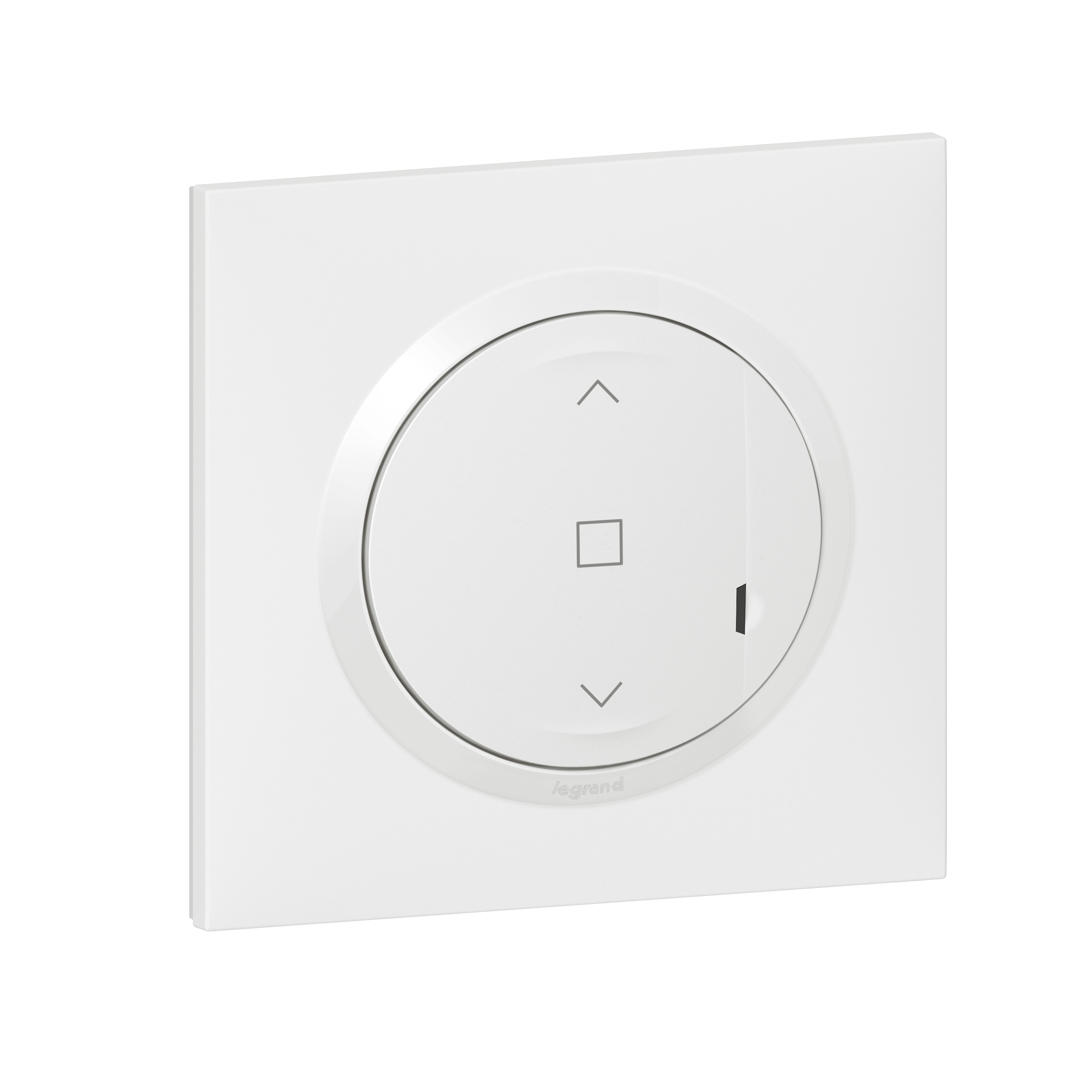

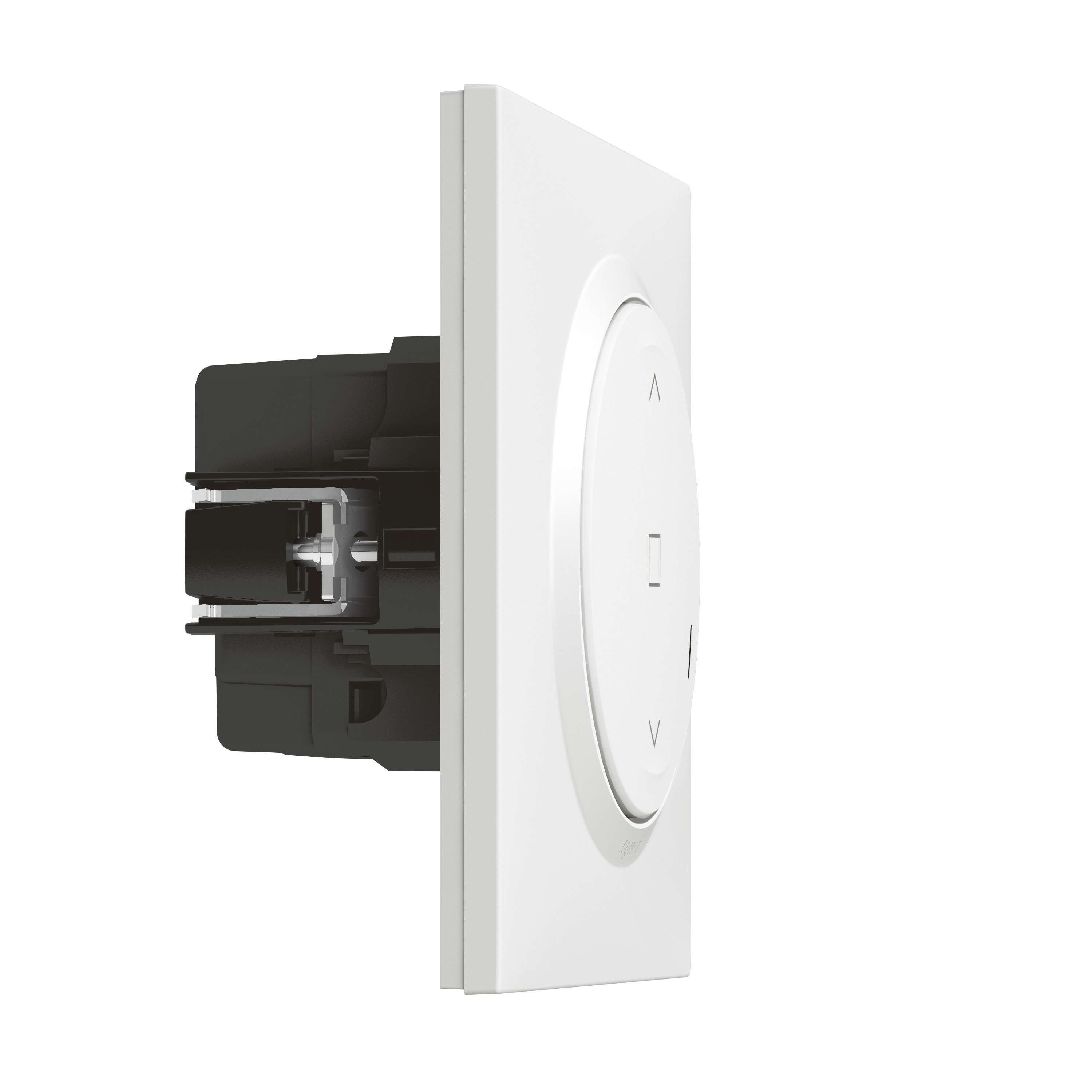

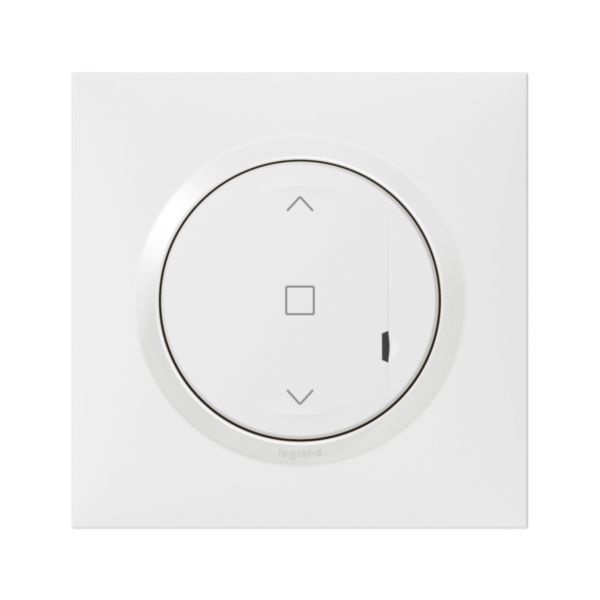

Connected roller shutter switch Dooxie with Netatmo

Name: Connected roller shutter switch Dooxie with Netatmo
SKU: 199234

dooxie™ Legrand

REF. 199234 EAN. 3414972320009

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Zigbee
Radio frequency bidirectional	Yes
Mounting method	Flush-mounted
Width in number of modular spacings	2
With bus connection	No
Bus module detachable	No
Local operation/hand operation	Yes
With LED indication	Yes
Number of inputs	4
Switching current (resistive)	2 A
Max. switching power	500 W
Max. number of venetian-blind outputs	1
With switch function	Yes
Type of current	AC
Degree of protection (IP)	IP41
Min. depth of built-in installation box	40 mm
Width	87 mm
Height	87 mm
Depth	47 mm
Built-in depth	35 mm
degree of impact strength (IK)	IK04

Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Nominal voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Standby consumption	2.1 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Colour	White
Halogen free	Yes
Antimicrobial treatment	No
Connection type	Screwed terminal
Number of terminals	4
Terminals capacity (Min-Max)	1.5-2.5 mm²
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Shutter management
Application name	Home + Control
Programming way	Smartphone apps

1 document

Select all

Instruction Use

LE13313AB.pdf pdf (4.11 Mo)

3 documents

Select all

Agreement

Decl. UE RED-A 4088 B (0.45 Mo)

PEP

LGRP-01807-V01.01-FR.pdf pdf (0.85 Mo)

Agreement

OC / CB-HU-005160 (0.7 Mo)
