Connected module for motorized garage and gate control

LEGRAND

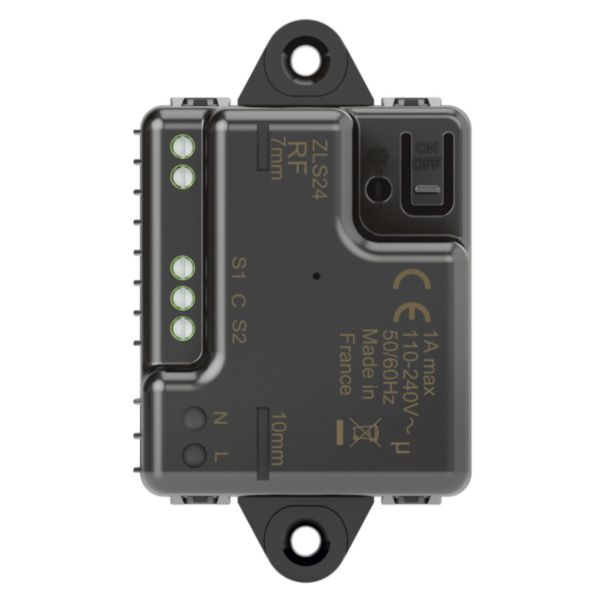

Connected module for motorized garage and gate control

REF. 067696 EAN. 3414971346727

The connected module for garage and gate enables the control of any kind of motorized garage door and gate. Allows the management using wireless controls, home+control app and voice.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The connected module for garage and gate enables the control of any kind of motorized garage door and gate. Allows the management using wireless controls, home+control app and voice.

Product characteristics
  • Connected module that drives the dry contact auxiliary entry of the door/gate motor.
  • Delivered with two wired opening/closing sensors for secured feedback of the door/gate status.
  • Can be associated with pocket remote control (LG - 067695) and/or any reference of wireless curtain/shutter control "with Netatmo".
  • Compatible with any kind of opening motor equipped with dry contact auxiliary entry.
  • 110/230V power supply. Pulse mode only

The product's benefits

Installation
  • Designed for indoor and outdoor usage thanks to its compatibility with Legrand weatherproof derivation boxes.
Usage
  • Control your garage door or gate easily with all voice assistants.
Avantages
  • Thanks to its two sensors, the door/gate management is perfectly secured.
  • Enables the opening and closing by level (opening percentage).
  • Door/gate status feedback in the app (opened, closed, blocked).

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Mounting method Built-in
With bus connection No
Bus module detachable No
Local operation/hand operation Yes
With LED indication Yes
Number of inputs 5
Switching current (resistive) 1 A
Max. switching power 200 W
Max. number of venetian-blind outputs 1
With switch function Yes
Type of current AC
Degree of protection (IP) IP20
Width 94 mm
Height 56 mm
Depth 29 mm
Built-in depth 29 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Standby consumption 2.1 mA
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Colour Black
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 5
Terminals capacity (Min-Max) 1.5-2.5 mm²
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant
Application name Home + Control
Product use function Shutter management
Programming way Smartphone apps
