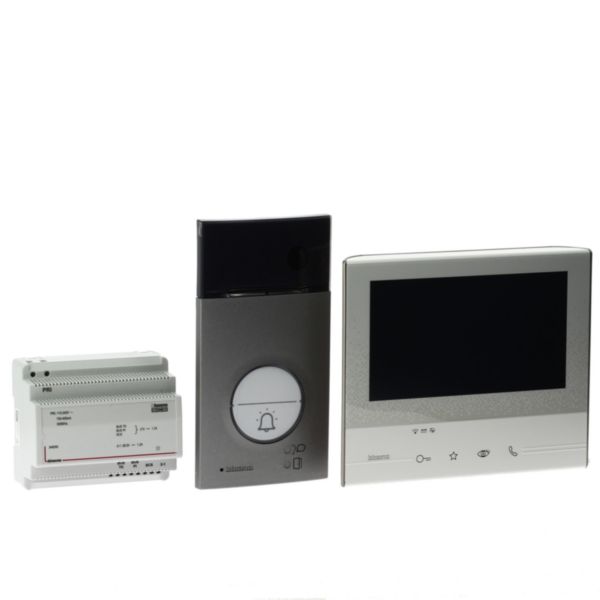

Connected handsfree door entry kit - classe 300X13E - Linea 3000 kit

Name: Connected handsfree door entry kit - classe 300X13E - Linea 3000 kit
SKU: BT363911

Bticino

REF. BT363911 EAN. 8012199663203

Compare You can only compare 4 products, you must remove 1 to add this one

With video	Yes
Number of indoor stations	1
Number of outdoor stations	1
Number of call buttons	2
Installation technique	Bus system
Mounting method indoor station	Surface mounted
Colour indoor station	White
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Anthracite
Expandable to max. number of indoor stations	0
Expandable to max. number of outdoor stations	0
Picture system	PAL
Property picture system	Colour
Overhear protected	No
Can be connected to smartphone	Yes
Internal communication	Yes
Hands free	Yes
With day/night function	Yes
Opening angle camera	105 °
Zoom, pan/tilt function	No
With memory function	Yes
Screen diagonal (inch)	7 inch
Manual adjustable camera	No
Label space/information surface	Yes
Hearing aid compatible	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Width	194 mm
Height	162 mm
Depth	22 mm
Built-in depth	0 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	5-40 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	DC

Nominal voltage (Min-Max)	18-27 V
Supply current (Min-Max)	0.4-0.4 A
Frequency (Min-Max)	50-60 Hz
Sound level	82 dB
Standby consumption	110 mA
Halogen free	Yes
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	0.28-1.5 mm²
Fitted with USB plug	Yes
Fitted with rainproof plate protection	Yes
With complemantary luminous signal	Yes
Mounting method	Supporting bracket
Control mode	Wireless
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	Yes
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	852x480
Screen brightness setting	Yes
Screen contrast setting	Yes
Memory video function	Yes
Camera type	Fixed
Communication rank type	Other
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Connected object	Yes
Operating method	SCS
Programming way	Configurator
With voice command	No
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Application name	Door Entry
Product use function	Door entry systems

1 document

Select all

Instruction Use

LE08972AJ.pdf pdf (15.4 Mo)

2 documents

Select all

PEP

LGRP-00643-V01.01-EN.pdf pdf (1.09 Mo)

Agreement

Decl. UE RED-70-326-04 (0.17 Mo)
