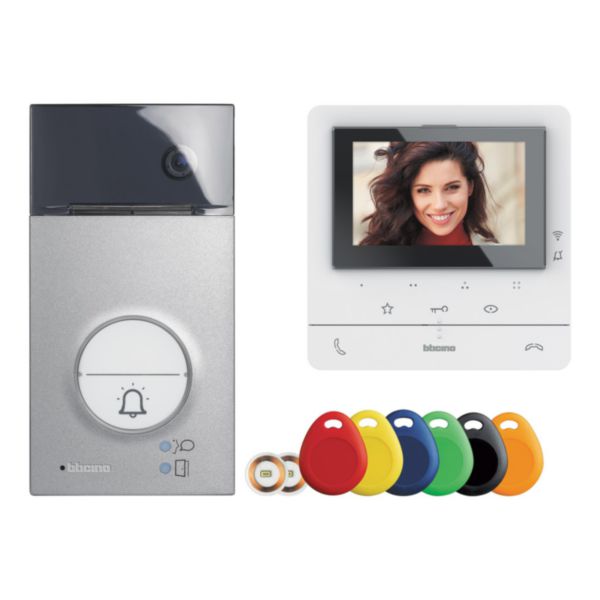

Connected door entry kit Classe 100X16E - 5inches screen and Linea 3000 street panel

BTICINO

Connected door entry kit Classe 100X16E - 5inches screen and Linea 3000 street panel

REF. BT364614 EAN. 8005543631607
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

With video Yes
Number of indoor stations 1
Number of outdoor stations 1
Number of call buttons 2
Installation technique Bus system
Mounting method indoor station Surface mounted
Colour indoor station White
Mounting method outdoor station Surface mounted
Material outdoor station Aluminium
Colour outdoor station Grey
Picture system PAL
Property picture system Colour
Overhear protected No
Can be connected to smartphone Yes
Internal communication Yes
Hands free Yes
With day/night function Yes
Opening angle camera 105 °
Zoom, pan/tilt function No
With memory function No
Screen diagonal 127 mm
Screen diagonal (inch) 5 inch
Manual adjustable camera Yes
Label space/information surface Yes
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Width 164 mm
Height 165 mm
Depth 20.5 mm
Built-in depth 0 mm
degree of impact strength (IK) IK10
Degree of protection (IP) IP54
Operating / setting temperature -25-70 °C
Storage temperature -40-100 °C
Voltage type DC
Nominal voltage 18-27 V
Supply current 0.030-0.35 A
Frequency 0-0 Hz
Sound level 81 dB
Standby consumption 30 mA
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Cable section 0.1-2.5 mm²
Fitted with USB plug Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal No
Mounting method Supporting bracket
Control mode Wireless
Contains Batteries and/or Accumulator No
Additional unit Yes
Loudness setting Yes
Addressable Yes
Door entry system with mobile application Yes
Number of ringtones 16
Remote opening of gate / Electric door opener Yes
Screen resolution Other
Screen brightness setting Yes
Screen contrast setting Yes
Memory video function No
Camera type Adjustable
Max distance between internal and external unit 600 m
Communication rank type Other
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Element Composition (Pack1) Not applicable
Connected object Yes
Operating method Wifi network , SCS
Application store for download App Store , Google Play Store
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box Yes
Application name Home + Security
Product use function Door entry systems
Programming way Smartphone apps

Documentation

1 document
Instruction Use
LE11133AE.pdf pdf (16.1 Mo)
2 documents
Catalogue Technical Page
ex223001_0858.pdf pdf (0.41 Mo)
Catalogue Commercial Page
ex223001_0855.pdf pdf (0.06 Mo)
2 documents
PEP
LGRP-01859-V01.01-EN.pdf pdf (0.82 Mo)
Agreement
