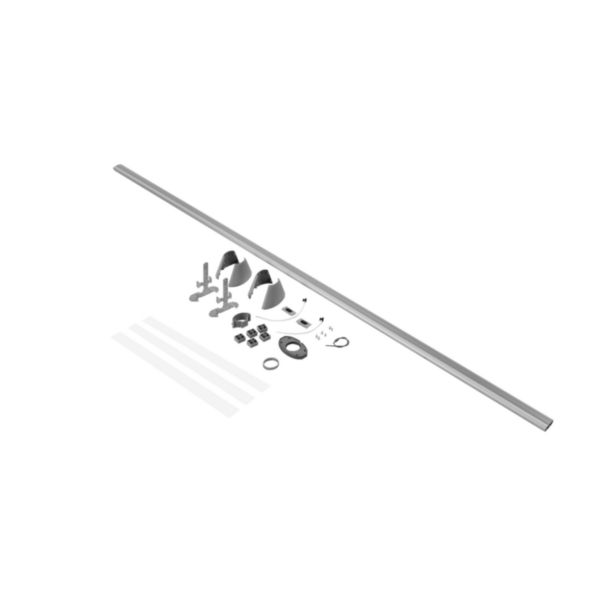

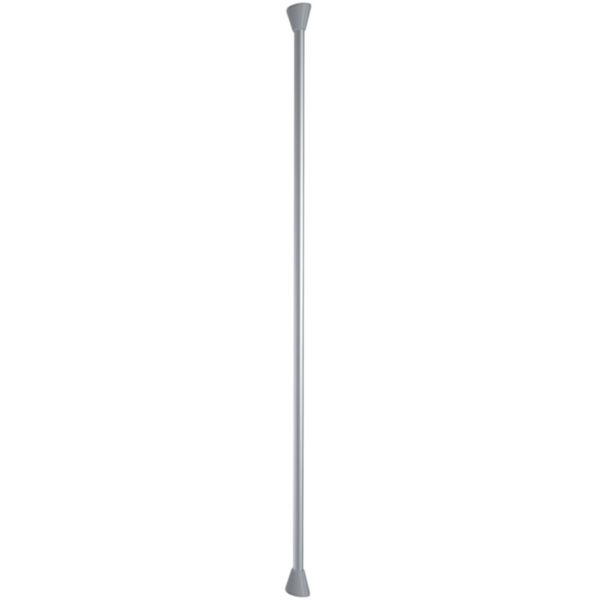

Complete Ovaline column, height 3,2m

LEGRAND

Complete Ovaline column, height 3,2m

REF. 653054 EAN. 3414971194984
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Aluminium
  • Height 3,2m
  • No useable
Recommendation / Restriction
  • Can not be installed outside. No useable

The product's benefits

Installation
  • Easy implementation
Usage
  • Discretion, aesthetics and ergonomics of the installation

Technical characteristics

Pillar shape Oval
Model Single-sided
Pre-wired No
Adjustable Yes
Height levelling 3200 mm
Column height (Min-Max) 0-3200 mm
Number of usable covers 1
Cover width 27 mm
Type of fastening Mounting flange
Place variable No
Suitable for ceiling mounting Yes
Suitable for floor mounting No
Cable entry Atop
Through-going profile Yes
Material installation column Aluminium
Material quality installation column Other
Material installation column halogen free Yes
Surface protection column Anodised
Colour column Other
Material cover Plastic
Material quality cover Polyvinyl chloride (PVC)
Material cover halogen free Yes
Cover surface Anodised
Colour top cover Other
Number of partitions 0
Usable cross section 1000 mm²

Documentation

2 documents
Technical Sheet
F02561EN_05.pdf pdf (1.21 Mo)
Instruction Use
LE10553AA-03.pdf pdf (3.99 Mo)
1 document
Catalogue Commercial Page
ex223001_1129.pdf pdf (0.1 Mo)
2 documents
PEP
LGRP-01606-V02.01-EN.pdf pdf (0.81 Mo)
PEP
LGRP-01606-V02.01-FR.pdf pdf (0.77 Mo)
