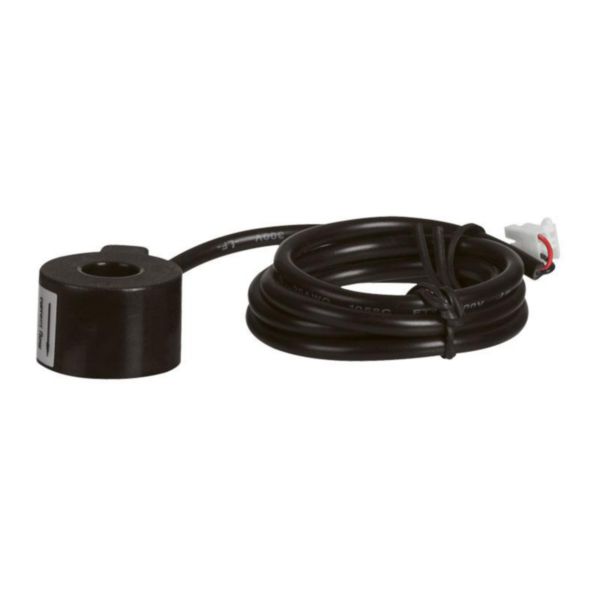

Name: Closed current transformer EMDX3 80A
SKU: 412008

Closed current transformer EMDX3 80A

EMDX³ LEGRAND

Closed current transformer EMDX3 80A

REF. 412008 EAN. 3414971485655

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Single-phase current converter
Rated primary current	80 A
Accuracy class	Other
Overcurrent limiting factor	FS 10
Calibrated	Yes
With contact protection	Yes
Height opening	10-10 mm
Width opening	10-10 mm
Opening diameter	10 mm
Snap mounting	Yes
With copper rail	No
Secondary connection	Plug-in connection

Number of primary inputs	1
Width	26.5 mm
Height	31.4 mm
Depth	16.2 mm
Degree of protection (IP)	IP20
Operating / setting temperature	-25-55 °C
Storage temperature	-25-55 °C
Voltage type	AC
Frequency	45-65 Hz
Terminal marking indication	No
Halogen free	Yes
Prewired	Yes
