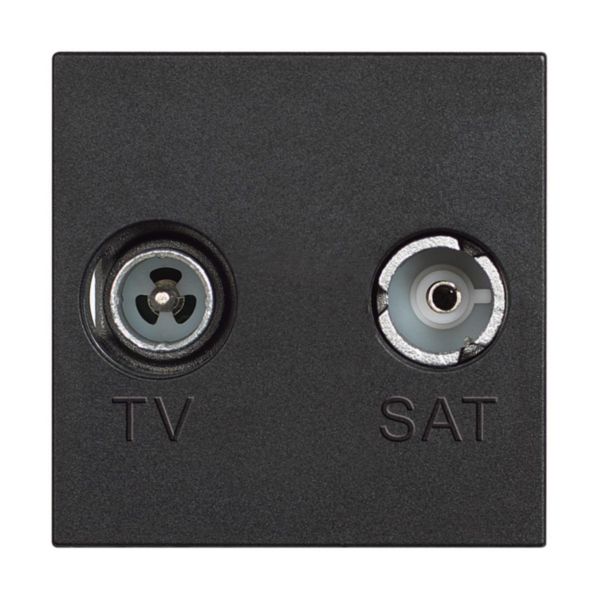

Classia TV-SAT socket demix 2M black

Name: Classia TV-SAT socket demix 2M black
SKU: BT-RG4217M2D

Classia Bticino

REF. BT-RG4217M2D EAN. 8005543632390

Compare You can only compare 4 products, you must remove 1 to add this one

Accommodates 2 modulos for flexible integration within modular frame systems.
Provides dual TV/SAT connectivity with optimised demix functionality for enhanced signal separation.
Matt black finish (RAL 9011) in durable, halogen-free duroplast for robust performance and contemporary aesthetics.
Snap mounting mechanism enables fast, secure installation with intuitive cable insertion and easy terminal block connection.
Engineered for optimal signal reception, supporting UHD/4K TVs; tap and through loss at 860MHz: 10dB; IP20 IK04 rated for indoor use.

Model	Loop-through socket
Type of socket outlet	TV/SAT
DAB+	No
Mounting method	Module frame
Number of modules (module system)	2
Assembly arrangement	Basic element with central cover plate
Tap loss at 860 MHz	10 dB
Number of outlets	2
Suitable for cable modem	No
Through loss at 860 MHz	10 dB
Suitable for remote power supply	No
Type of fastening	Snap mounting (engagement)
Colour	Black
RAL-number (similar)	9011
Surface protection	Untreated

Surface finishing	Matt
Material	Plastic
Material quality	Duroplast
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	44.7 mm
Device height	45 mm
Device depth	41.5 mm
Min. depth of built-in installation box	31.7 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	No
