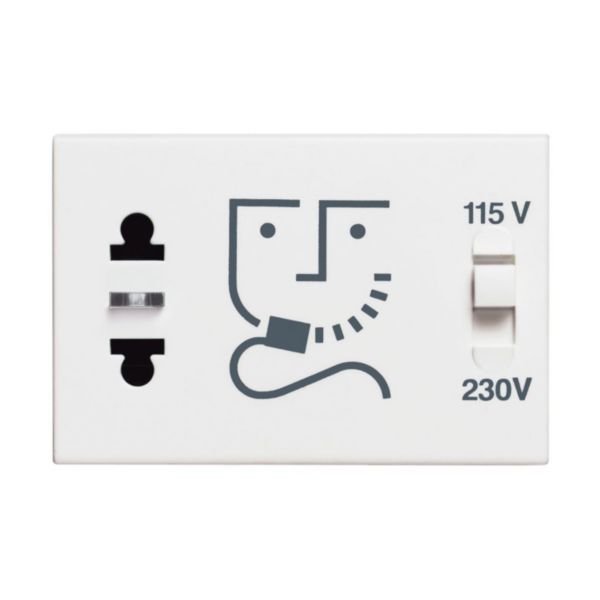

Classia shaver socket 230V - white

Name: Classia shaver socket 230V - white
SKU: BT-RW4177

Classia Bticino

REF. BT-RW4177 EAN. 8005543632741

Compare You can only compare 4 products, you must remove 1 to add this one

Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	3
Mounting method	Flush-mounted
With hinged lid	No
Voltage reversible	Yes
Nominal voltage low value	115 V
Nominal voltage high value	230 V
Rated output	20 VA
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Transparent	No
Device width	67.3 mm

Device height	45 mm
Device depth	57.9 mm
With built-in installation box	No
Min. depth of built-in installation box	50 mm
Built-in depth	44.2 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP21
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	No
Antimicrobial treatment	No
Connection type	Screwed terminal
Cable nature for connection	Flexible or rigid
Label space/information surface	No

1 document

Select all

Technical Sheet

IDP000252_02-EN.pdf pdf (0.45 Mo)
