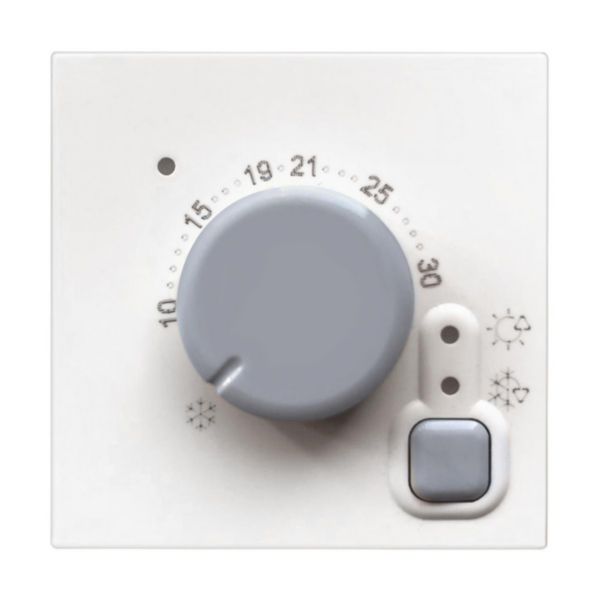

Classia room temperature control 230V - white

Classia Bticino

Classia room temperature control 230V - white

REF. BT-RW4441 EAN. 8005543634455
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Electronic room thermostat – relay output with 1 contact in switch ing 2 A, 50 and 60 Hz
  • 3 modules
  • color white
  • screw terminals
  • 251 Va.c. - 230 Va.c. power supply
Recommendation / Restriction
  • For indoor use only.

The product's benefits

Installation
  • Easy to insall and remove
Usage
  • Gives the possibility to control the temperature of the house

Technical characteristics

Type of power supply 230 V AC
With receiver No
External sensor Yes
Control characteristic Other
Suitable for heating Yes
Temperature readable No
With sound indicator No
Sensor/feeler type Resistance sensor
Mounting method Flush-mounted
With display No
With tap water circuit No
Contact type Normally open contact (NO)
Max. contact voltage 250 V
Degree of protection (IP) IP40
Explosion-proof No
Colour White
RAL-number 9003
Height 45 mm
Width 44.7 mm
Depth 41.5 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz

Documentation

2 documents
Instruction Use
LE10811AB.pdf pdf (1.67 Mo)
Technical Sheet
IDP000254_02-EN.pdf pdf (0.42 Mo)
