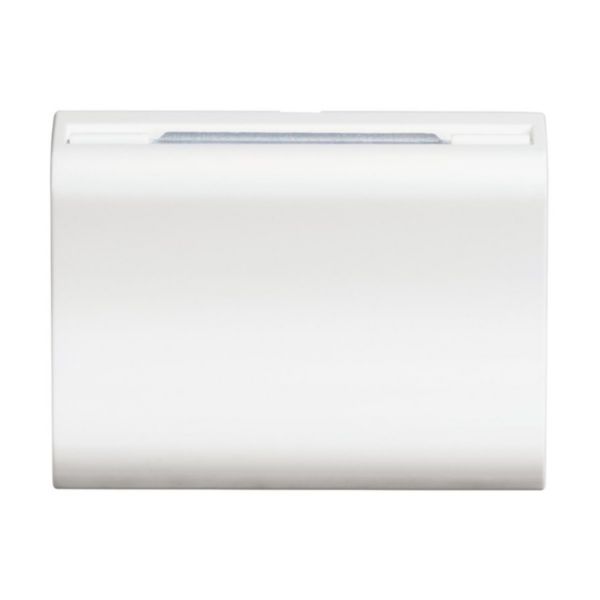

Classia key fob switch 2 modules - white

Name: Classia key fob switch 2 modules - white
SKU: BT-RW4549

Classia Bticino

REF. BT-RW4549 EAN. 8005543636794

Compare You can only compare 4 products, you must remove 1 to add this one

The power supply to the room is activated by the introduction of the badge and remains active for up to 30 seconds after the badge has been deactivated.

Wiring system	Normally open contact (NO)
Method of operation	Hotel card
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	2
Push button switch	Yes
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Colour of switch operator	White
Label space/information surface	No
Lighting	No
Function lighting	Other
Type of lighting	Other
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Nominal voltage	230 V

Rated current	10 A
Switching current for fluorescent lamps	10 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	61 mm
Device height	45.1 mm
Device depth	42.7 mm
Built-in depth	32.9 mm
Min. depth of built-in installation box	30 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²

2 documents

Select all

Technical Sheet

IDP000253_02-EN.pdf pdf (0.37 Mo)

Instruction Use

LE10810AB.pdf pdf (1.85 Mo)
