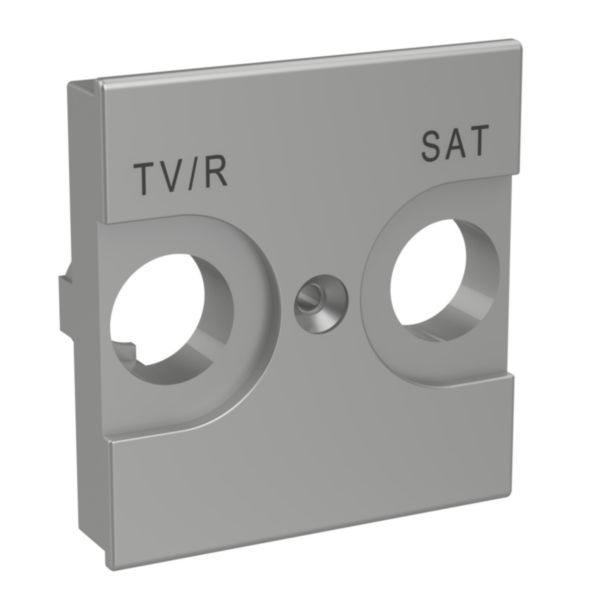

Classia front cover for TV/R-SAT fi bases in round boxes and square -2 modules - aluminium

Name: Classia front cover for TV/R-SAT fi bases in round boxes and square -2 modules - aluminium
SKU: BT-RA4212

Classia Bticino

REF. BT-RA4212 EAN. 8005543680414

Compare You can only compare 4 products, you must remove 1 to add this one

aluminium technopolymer cover with satin finish and silky feel.
central hole for a screw to secure the socket to cover
2 modules
technopolymer, satin aluminum
Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered

It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

Type of fastening	Mounting with screw
Number of modules (module system)	2
With buses/couplings	No
Suitable for number of connectors	2
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
With lighting	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK00
Device width	45 mm
Device height	45 mm
Device depth	10 mm
Min. depth of built-in installation box	35 mm
Built-in depth	10 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

1 document

Select all

Technical Sheet

IDP001499_01-EN.pdf pdf (0.72 Mo)
