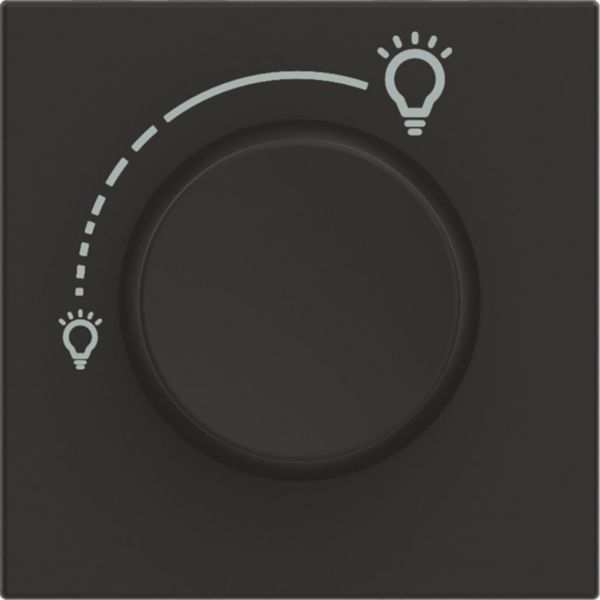

Classia dimmer LED + ON/OFF black

Name: Classia dimmer LED + ON/OFF black
SKU: BT-RG4415

Classia Bticino

REF. BT-RG4415 EAN. 8005543715864

Compare You can only compare 4 products, you must remove 1 to add this one

LED dimmer with integrated ON/OFF functionality for precise lighting control in professional installations.
Supports leading edge phase cut-on dimming, optimised for resistive, inductive, and capacitive loads up to 400W/400VA.
Robust thermoplastic construction in matt black (RAL 9011), halogen free, with IP40 and IK04 ratings for enhanced durability.
Turn/push button operation with basic element and central cover plate, suitable for module frame mounting (2 modules, 45x45x58mm).
Screwed terminal connections accommodate 1.5mm² to 2.5mm² flexible or rigid cables, with AC voltage operation at 220V 230V, 50Hz 60Hz.

Assembly arrangement	Basic element with central cover plate
Method of operation	Turn/push button
Number of modules (module system)	2
Number of units	1
App control via Bluetooth	No
Dimming phase cut-on (leading edge)	Yes
Dimming phase cut-off (trailing edge)	No
Serial dimmer	Yes
Type of load	Other
Substation input	No
Light value memory	No
Applicable with button	Yes
Applicable with movement sensor	No
Applicable with presence indicator	No
Applicable with time switch/timer	No
Applicable with transmission button	No
Applicable with infrared button	No
Min. brightness controllable	Yes
Mounting method	Module frame
Type of fastening	Other
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Black
RAL-number (similar)	9011
Transparent	No
Suitable for degree of protection (IP)	IP40

degree of impact strength (IK)	IK04
Nominal voltage (Min-Max)	220-230 V
Frequency (Min-Max)	50-60 Hz
Control voltage (Min-Max)	220-230 V
Nominal power resistive load (Min-Max)	40-400 W
Nominal power inductive load (Min-Max)	40-400 VA
Nominal power capacitive load (Min-Max)	40-400 VA
Max. switching power LED	200 W
Connection type	Screwed terminal
Cable section (Min-Max)	1.5-2.5 mm²
Device width	45 mm
Device height	45 mm
Device depth	58 mm
Min. depth of built-in installation box	43 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	33 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Mandatory neutral	No
Terminal marking indication	No
Stress test conformity (1000V)	No
Antimicrobial treatment	No
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Tube diameter for wall mounted product (Min-Max)	1.5-2.5 mm
