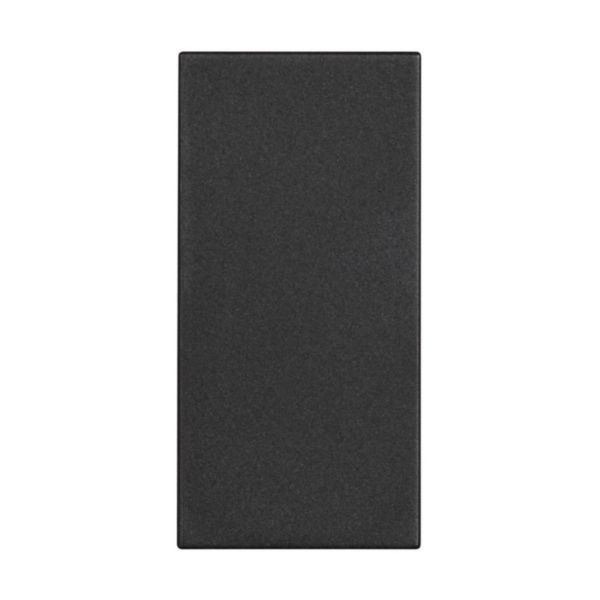

Classia blank plate 1 module - black

Classia Bticino

Classia blank plate 1 module - black

REF. BT-RG4950 EAN. 8005543631928
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • The blank plate fills the emply space on the support flame
  • 1 module
  • color black
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Easy to insall and remove
Usage
  • Guarantee the maintainance of the aesthetic without putting functions that are not necessary
Avantages
  • Higt technical performance
  • modern shape, slightly curved cover

Technical characteristics

Material Plastic
Height 45.1 mm
Hole diameter 22.5 mm
Depth 22.5 mm
Width 22.3 mm
Colour Black
Construction type lens Rectangular
degree of impact strength (IK) IK04
Degree of protection (IP) IP40
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
RAL-number 9011
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted

Documentation

1 document
Technical Sheet
IDP000250_02-EN.pdf pdf (0.35 Mo)
2 documents
PEP
LGRP-01182-V01.01-EN.pdf pdf (0.58 Mo)
Agreement
AENOR-030/002561 (0.32 Mo)
