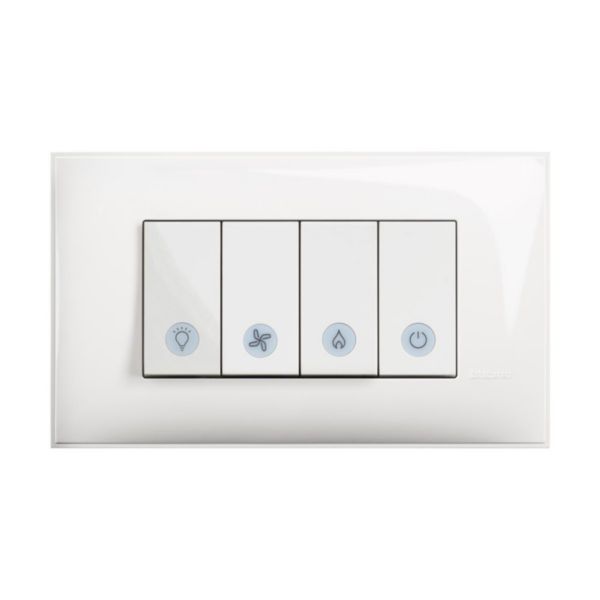

Classia bathroom switch 4 circuits (light, fan, heater, boiler) - white

Name: Classia bathroom switch 4 circuits (light, fan, heater, boiler) - white
SKU: BT-RW4001B4

Classia Bticino

REF. BT-RW4001B4 EAN. 8005543636091

Compare You can only compare 4 products, you must remove 1 to add this one

Bathroom switch with indication for four independent circuits 2x10/2x16 AX 250 Va.c. (light, fan, heater, boiler)
4 modules
color white
screw terminals

Wiring system	Switch 1-pole
Method of operation	Rocker/button
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	4
Push button switch	Yes
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Colour of switch operator	White
Label space/information surface	No
Lighting	Yes
Function lighting	Orientation
Type of lighting	LED exchangeable
Suitable for degree of protection (IP)	IP20
Nominal voltage	250 V

Switching current for fluorescent lamps	16 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	144.5 mm
Device height	86 mm
Device depth	42.7 mm
Built-in depth	32.9 mm
Min. depth of built-in installation box	30 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²
