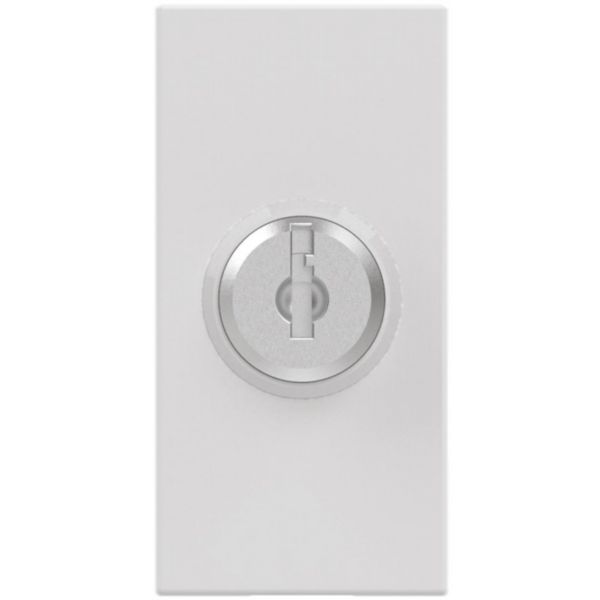

Classia 2 way switch w. key 1M white

Name: Classia 2 way switch w. key 1M white
SKU: BT-RW4022

Classia Bticino

REF. BT-RW4022 EAN. 8005543710937

Compare You can only compare 4 products, you must remove 1 to add this one

Two-way switch with key operation enables flexible control of lighting circuits from multiple locations.
Rated for 10AX switching current at 250V, suitable for demanding fluorescent and resistive loads.
Modular 1-gang design with flush mounting for seamless integration into domestic wiring systems.
Constructed from halogen-free thermoplastic with matt white finish (RAL 9003) for enhanced safety and aesthetics.
IP40 and IK04 rated, providing reliable protection against dust ingress and moderate mechanical impact.

Wiring system	Two-way switch
Method of operation	Key
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	1
Push button switch	No
Number of rockers	1
Mounting method	Flush-mounted
Type of fastening	Other
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White
RAL-number (similar)	9003
Colour of switch operator	Aluminium
Label space/information surface	No
Lighting	No
Function lighting	Other
Type of lighting	Other
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04
Nominal voltage	250 V

Rated current	10 A
Switching current for fluorescent lamps	10 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	22 mm
Device height	45 mm
Device depth	44 mm
Built-in depth	32 mm
Min. depth of built-in installation box	42 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Compliant with UK Building Regulations Part M	No
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	No
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²
