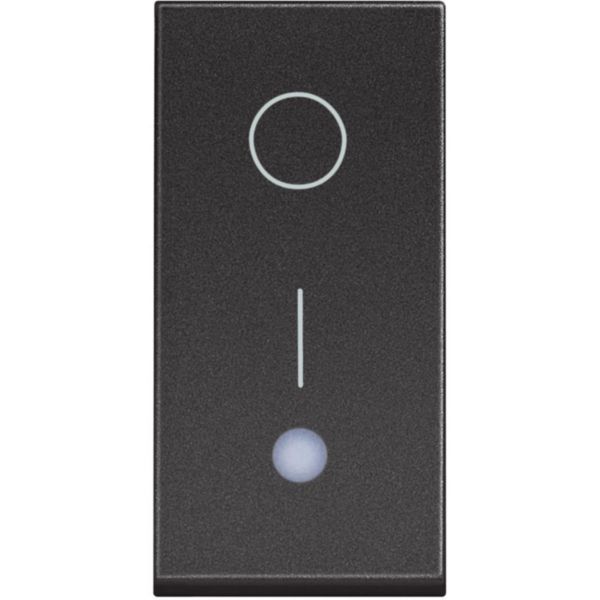

Classia 1way switch 2P 16AX 1 module - black

Name: Classia 1way switch 2P 16AX 1 module - black
SKU: BT-RG4002LNL

Classia Bticino

REF. BT-RG4002LNL EAN. 8005543679241

Compare You can only compare 4 products, you must remove 1 to add this one

Wiring system	Switch 1-pole
Method of operation	Rocker/button
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	1
Push button switch	Yes
Number of rockers	1
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	Black
RAL-number (similar)	9011
Colour of switch operator	Black
Label space/information surface	No
Lighting	Optional
Function lighting	Illuminated (on)
Type of lighting	LED exchangeable
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK00
Nominal voltage	250 V

Rated current	16 A
Switching current for fluorescent lamps	16 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	22.2 mm
Device height	45.1 mm
Device depth	42.7 mm
Built-in depth	32.9 mm
Min. depth of built-in installation box	30 mm
Compatible with Apple HomeKit	Yes
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	No
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²

1 document

Select all

Technical Sheet

IDP001536_01-EN.pdf pdf (0.57 Mo)
