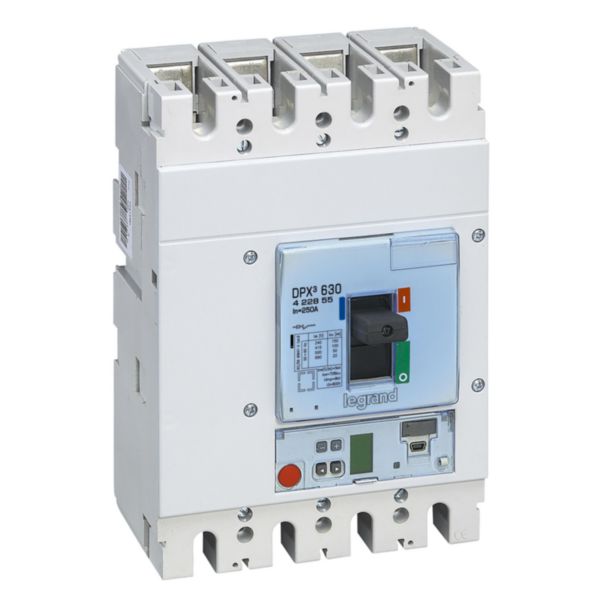

Name: Circuit breaker DPX³ 630 4 poles,rated current of 250A and S10 electronic protection unit
SKU: 422855

Circuit breaker DPX³ 630 4 poles,rated current of 250A and S10 electronic protection unit

DPX³ 630 LEGRAND

Circuit breaker DPX³ 630 4 poles,rated current of 250A and S10 electronic protection unit

REF. 422855 EAN. 3414972258715

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity of 100kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrialinstallations.Rated insulation voltage of 800V. Rated impulse withstand voltage of 8kV
Compliat with NEMA AB‐1.Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
Completely flexible regolation of the protection unit by dedicates App and software for thermal and magnetic currents and timesThermal protection within range of 0,4 - 1,0 of the rated current.Magnetic protection within range of 1,5 - 10 of the rated current.
Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts.Can used with rotary handles or motor operator.Locking accessories are available.
Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals.Is available also in a plug-in version or draw-out configuration (circuit breaker fitted with special terminals and mountedon a plug-in base).An module can be added in order to get protection agains earth leakage faults.

DPX³ platform has been developed to give a new solution ofprotection devices for a more precise approach in power installations inorder to offer the correct answer for different project needs.

DPX³ platform provide a complete "project" approach in premiummarket segment, offering a range completely suitable for high powerapplication

DPX³ 630 is the answer for the competition in the project sub-segment.A unique size for all versions (thermal magnetic, electronic with or without measure).Earth leakage fetures can be achieved by adding a dedicated module at the bottom of the breaker itself.
Adjustment of Ir, Isd, Ii, Ig, tr, tsd, tg directly on the MCCB or via software/AppFor connection to the App add a Bluetooth communication key ref. LG-028310Green indicator lamp. Connector for test unitLogical selectivityFor 4P version: adjustment of neutral on front panel or by software or App
EnerUp + Project App for smartphone and tablet available onApple Store and Google PlayConfiguration, monitoring and management software (PCS) availablefor download via e-catalogue (does not require the use of Bluetoothcommunication key ref. LG-028310

Rated permanent current Iu	250 A
Rated voltage (Min-Max)	230-400 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	100 kA
Overload release current setting (Min-Max)	0.2 - 1 A
Adjustment range short-term delayed short-circuit release (Min-Max)	1.5 - 10 A
Device construction	Complete device in housing
Integrated earth fault protection	No
Type of electrical connection of main circuit	Screw connection
Suitable for DIN rail (top hat rail) mounting	Yes
DIN rail (top hat rail) mounting optional	Yes
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as change-over contact	1
With switched-off indicator	No
With integrated under voltage release	No
Number of poles	4
Position of connection for main current circuit	Back side
Type of control element	Wing knob
Complete device with protection unit	Yes

Motor drive integrated	No
Motor drive optional	Yes
Degree of protection (IP)	IP30
Width	270 mm
Height	150 mm
Depth	170 mm
degree of impact strength (IK)	IK07
Operating / setting temperature (Min-Max)	-5 - 70 °C
Storage temperature (Min-Max)	-40 - 85 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Colour	Grey
Halogen free	Yes
Terminals capacity (Min-Max)	90 - 150 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	Yes
Contains Batteries and/or Accumulator	No
