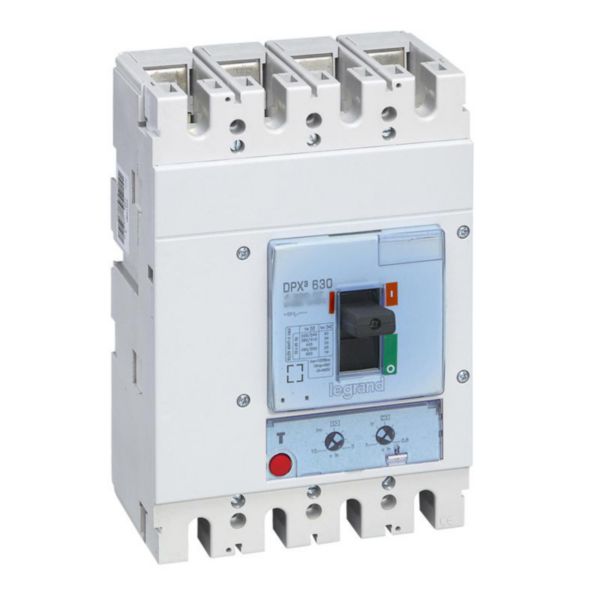

Circuit breaker DPX3 250,4 poles, with rated current of 250A and electronic protection.+earth leakage protection

DPX³ 250 LEGRAND

Circuit breaker DPX3 250,4 poles, with rated current of 250A and electronic protection.+earth leakage protection

REF. 422008 EAN. 3414970378040
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Rated permanent current Iu 500 A
Rated voltage 220-690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 36 kA
Overload release current setting 400-500 A
Adjustment range undelayed short-circuit release 2500-5000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as change-over contact 2
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Toggle
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP30
